Cornerstone FORTUS 12D Retaining Walls

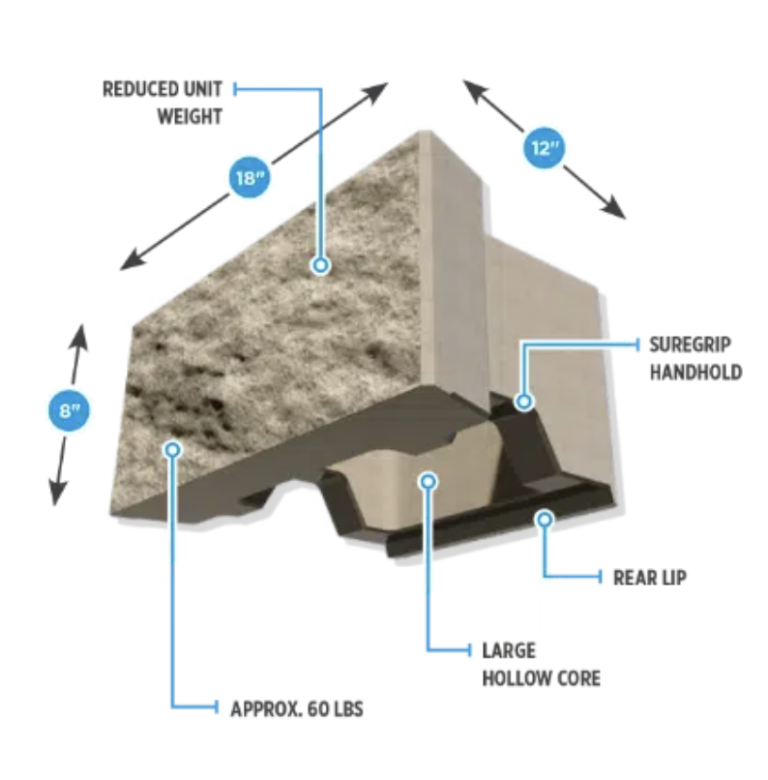

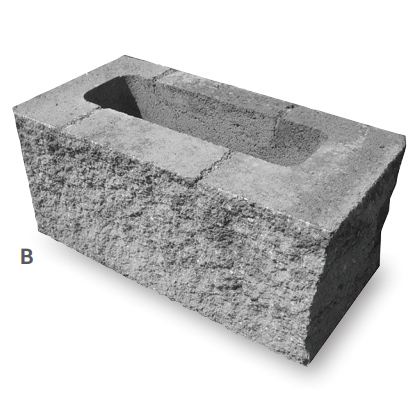

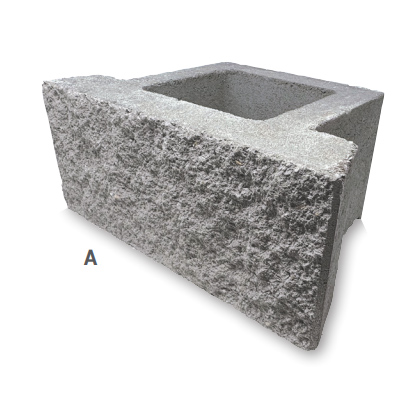

NEW PRODUCT! The Fortus 12D® is the newest retaining wall unit by CornerStone® Wall Solutions and is built with a multi-purpose hollow core that makes it easy to install. It also has excellent drainage capabilities and equipped with built-in patented SureGrip® handholds that make lifting and installation easier. Lastly, the Fortus 12D® has a rear lip that makes for consistent setbacks and alignment when installing.

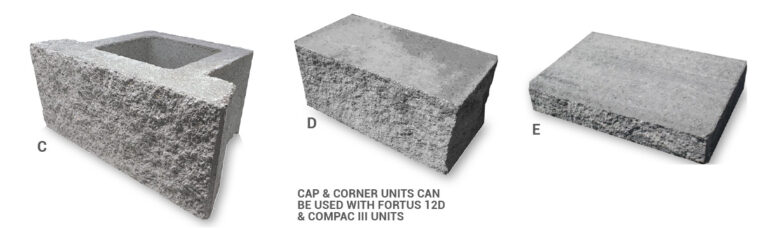

| ITEM | DIMENSIONS | STYLE | SQFT/UNIT | SQFT/LAYER | LAYERS/PALLET | SQFT/PALLET | UNIT WT | PALLET WEIGHT |
| C | 8″ x 18″ x 12″ WALL | SHS | 1 | 8 | 4 | 45 | 63LBS | 2354 LBS |
| D | 8″ x 18″ x 9″ CORNER | SHS | 1 | 9 | 4 | 36 | 97 LBS | 3542 LBS |

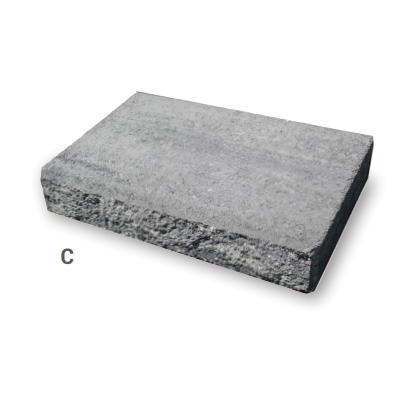

| E | 4″ x 18″ x 12″ CAP | SHS | .5 | 12 LNFT | 7 | — | 65 LBS | 3808 LBS |
SHS=Straight Hardsplit | Caps sold by each unit; 8 units per layer; 56 total units/pallet.
Colors
Chocolate/Tan
Gray/Charcoal
Tan/Charcoal
Gray
Tan
Ravens Blend
Sandstone Blend

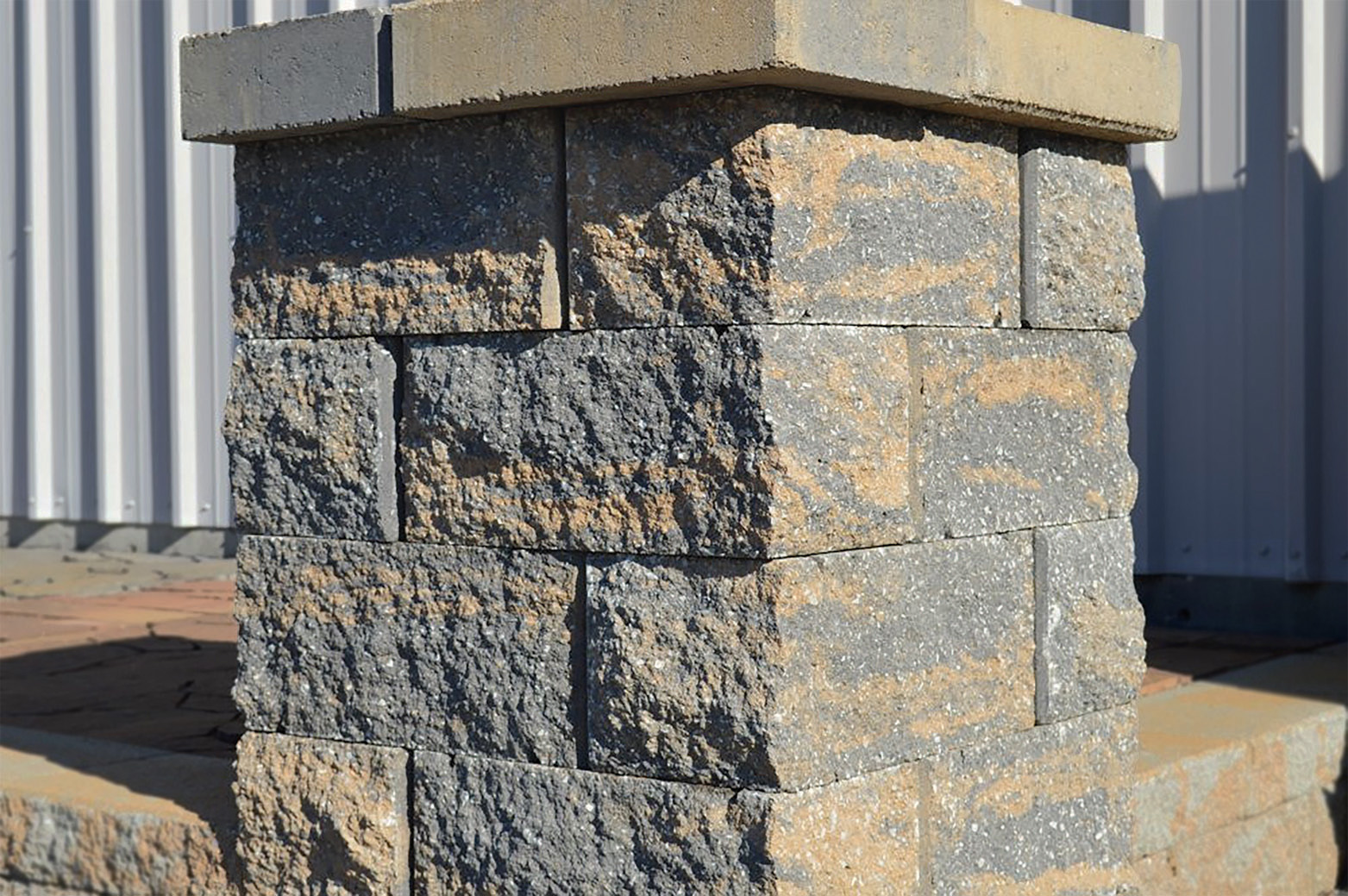

Woodland Blend
Ravens, Sandstone and Woodland Blends are made at the New Albany, IN plant only. Ask your local sales rep for more information. Additional shipping fees may apply.

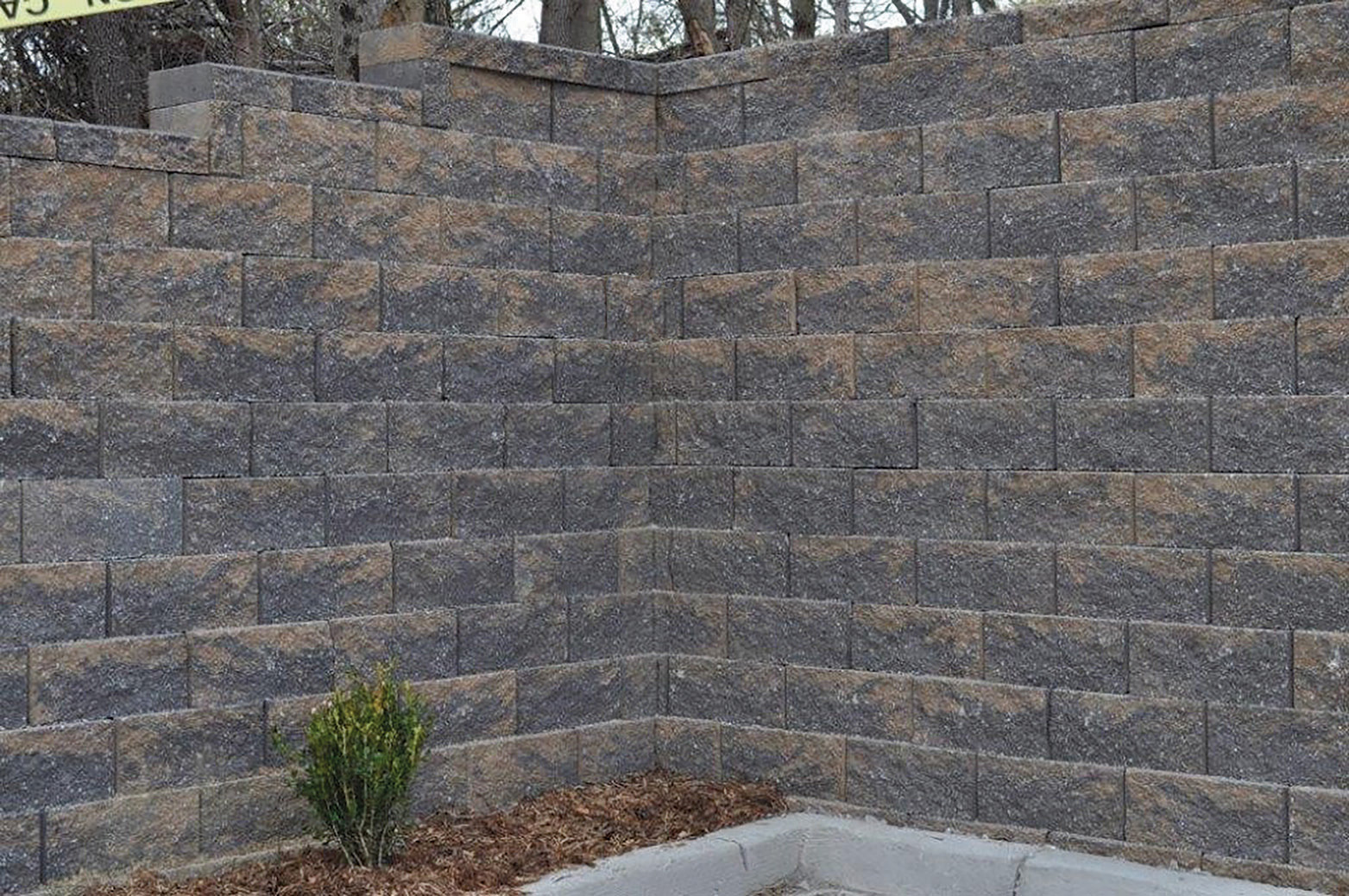

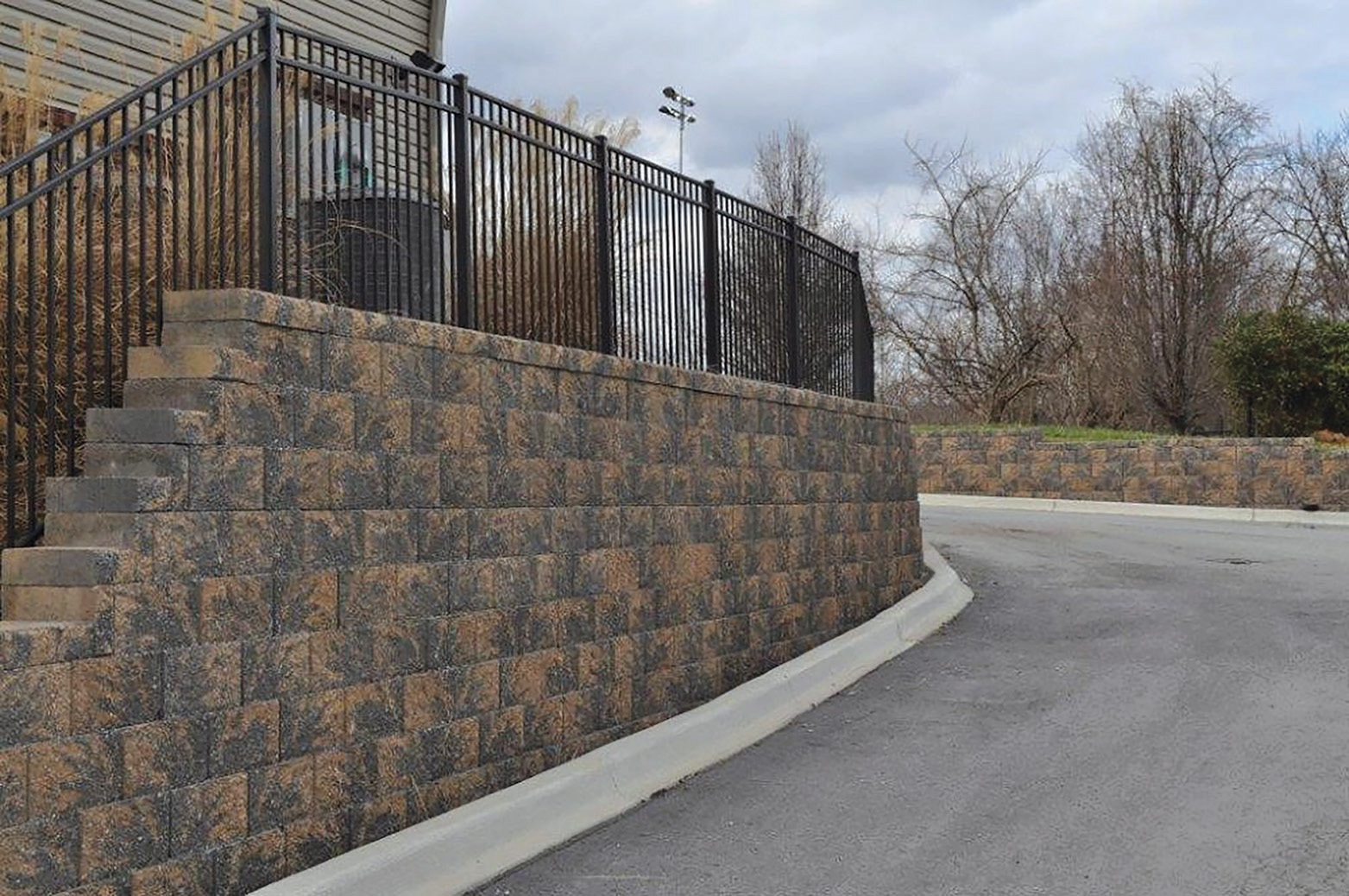

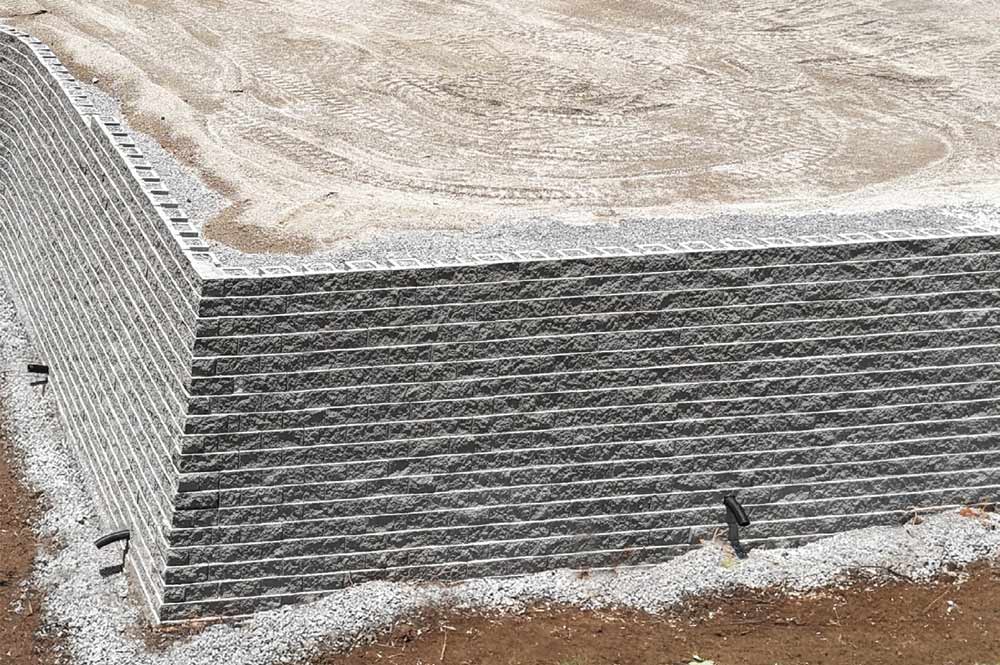

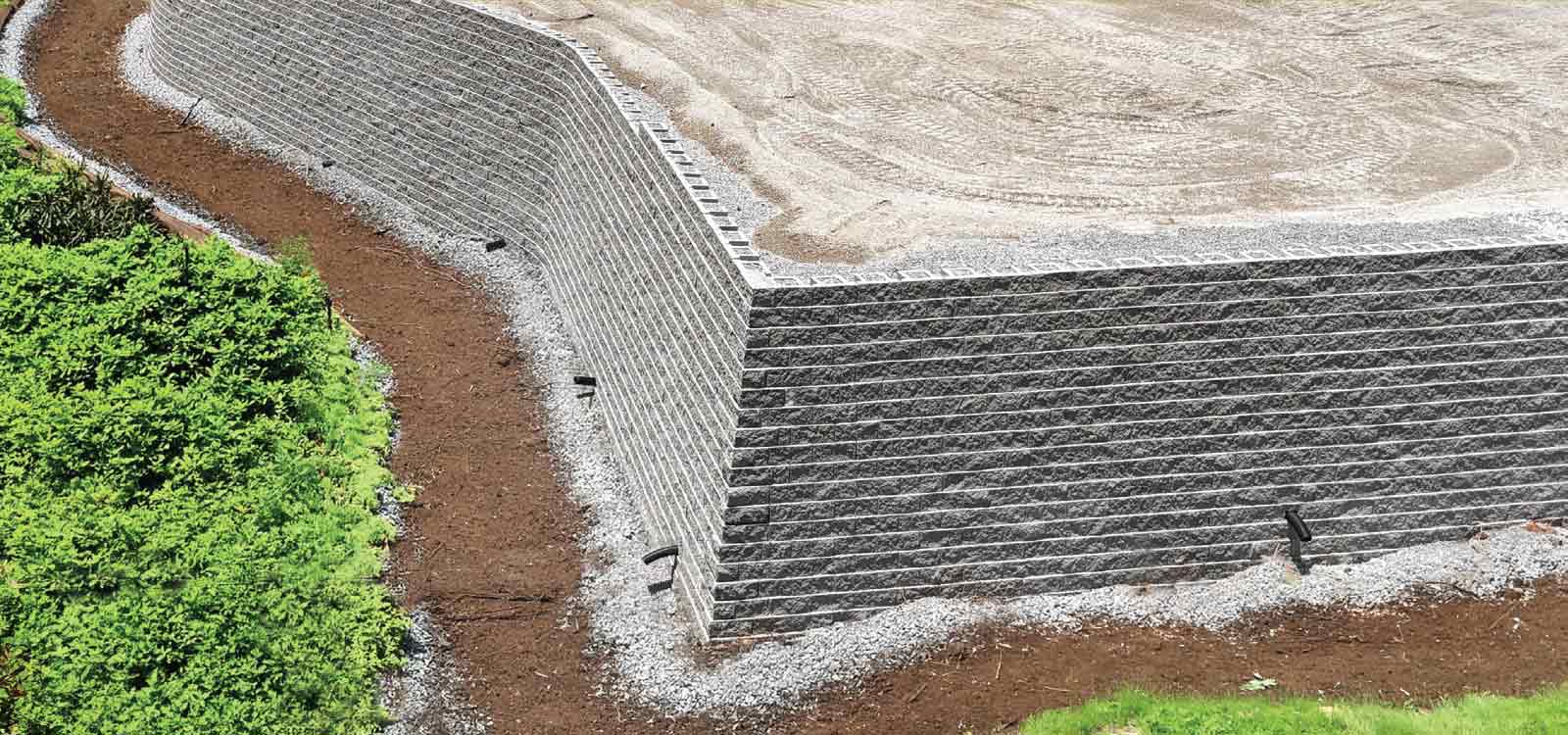

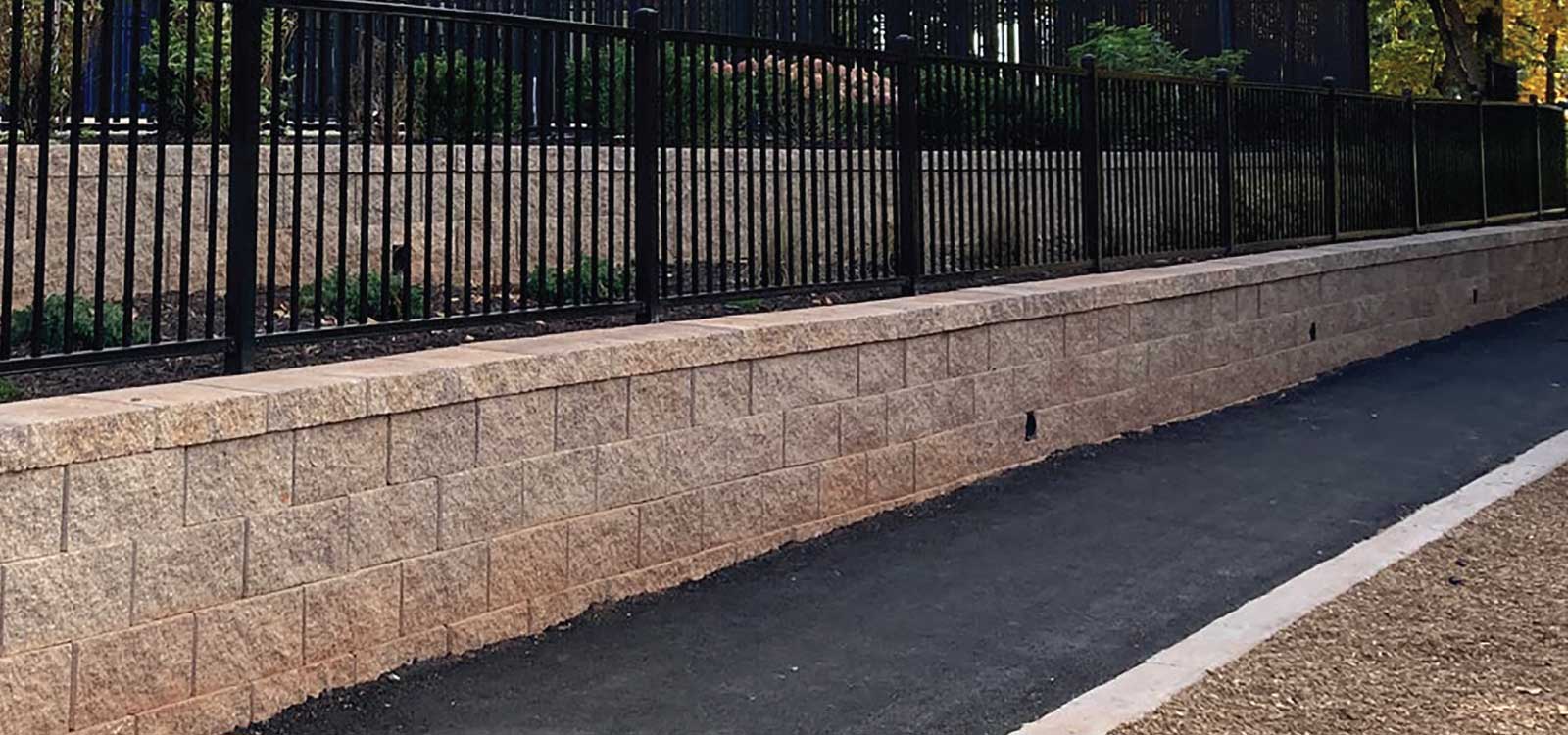

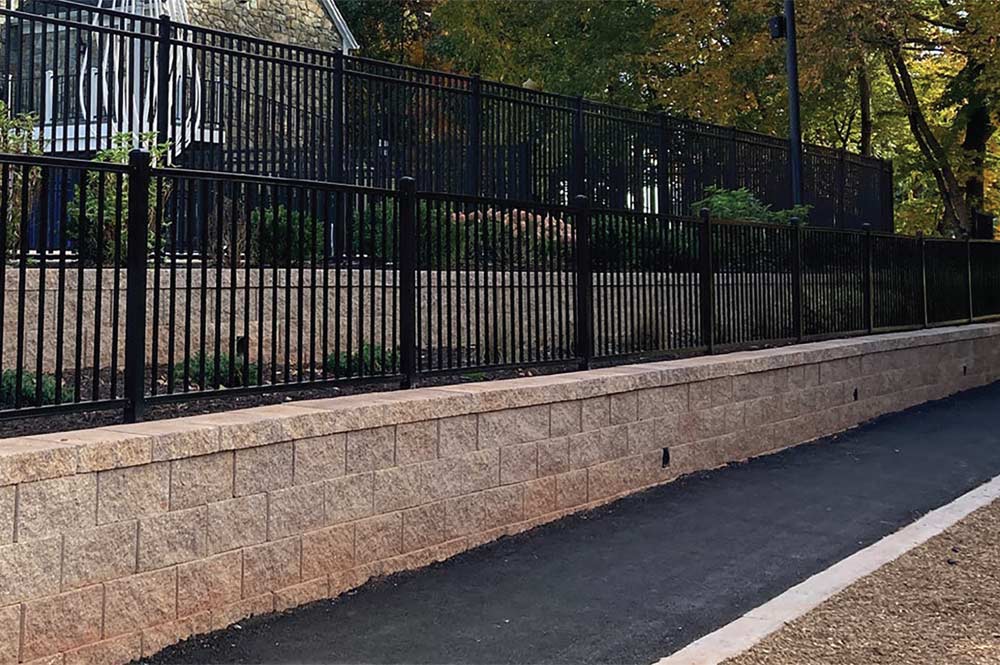

Gallery
