Fortus 12D Retaining Walls

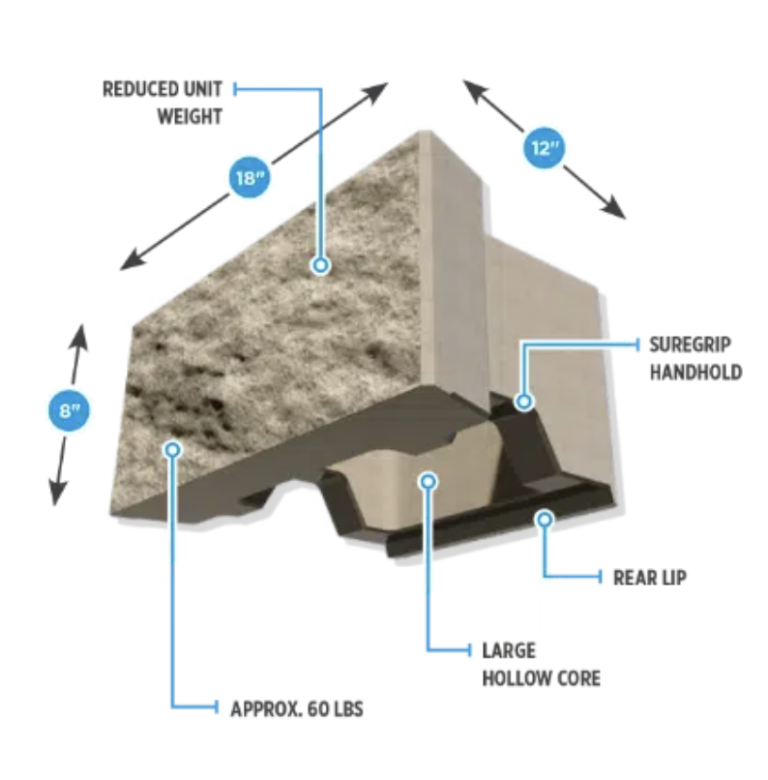

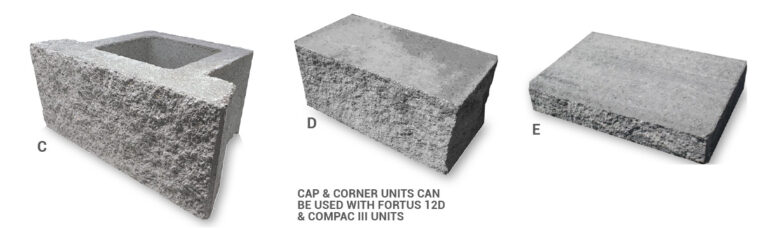

The Fortus 12D® is the newest retaining wall unit by CornerStone® Wall Solutions and is built with a multi-purpose hollow core that makes it easy to install. It also has excellent drainage capabilities and equipped with built-in patented SureGrip® handholds that make lifting and installation easier. Lastly, the Fortus 12D® has a rear lip that makes for consistent setbacks and alignment when installing. Top off your Fortus 12D® project with corners and caps (B & C).
| ITEM | DIMENSIONS (LxDxH) | STYLE | SQFT/UNIT | SQFT/LAYER | LAYERS/PALLET | SQFT/PALLET | UNIT WT | PALLET WEIGHT |

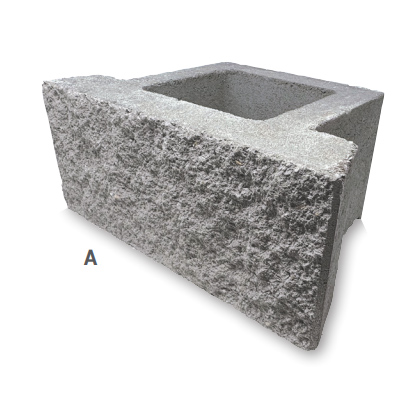

| A | 18″ x 12″ x 8″ | SHS WALL | 1 | 8 | 4 | 45 | 63LBS | 2354 LBS |

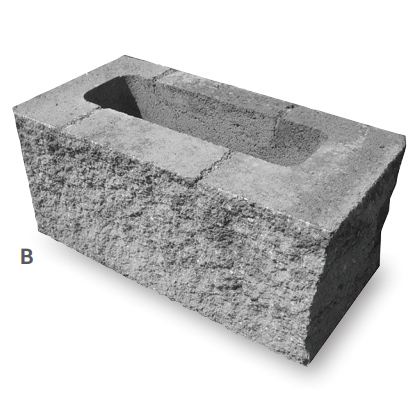

| B | 18″ x 9″ x 8″ | CORNER | 1 | 9 | 4 | 46 | 97 LBS | 3542 LBS |

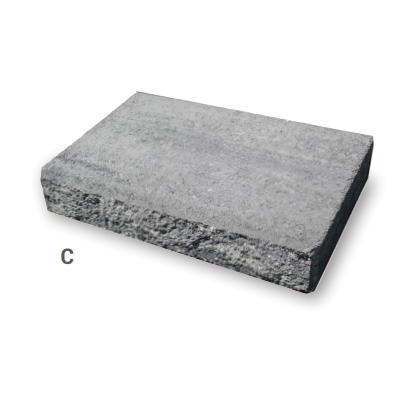

| C | 18″ x 12″ x 4″ | SHS CAP | .5 | 12 LNFT | 7 | — | 65 LBS | 3808 LBS |
SHS=Straight Hardsplit | Caps sold by each unit; 8 units per layer; 56 total units/pallet.
Colors
*Colors manufactured in Nashville, TN.
Chocolate/Tan
Gray/Charcoal
Tan/Charcoal
Gray
Tan
*Colors manufactured in New Albany, IN.
Ravens Blend
Sandstone Blend
Woodland Blend
Actual product color may vary. We recommend reviewing product samples before making final color selections. Contact your local LEE Building Products for product availability and color options in your area. Select styles may vary per region. Special orders available upon request.

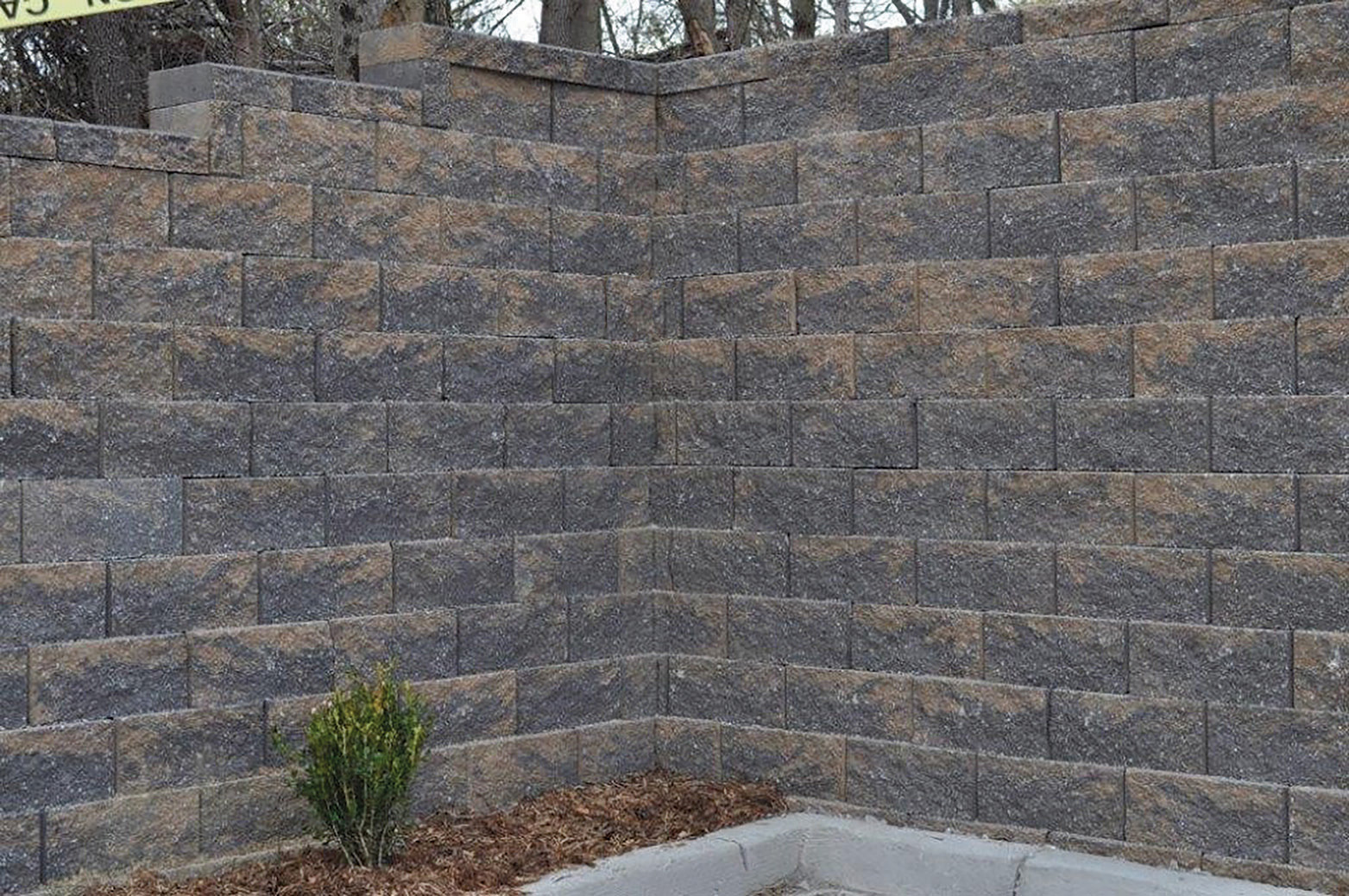

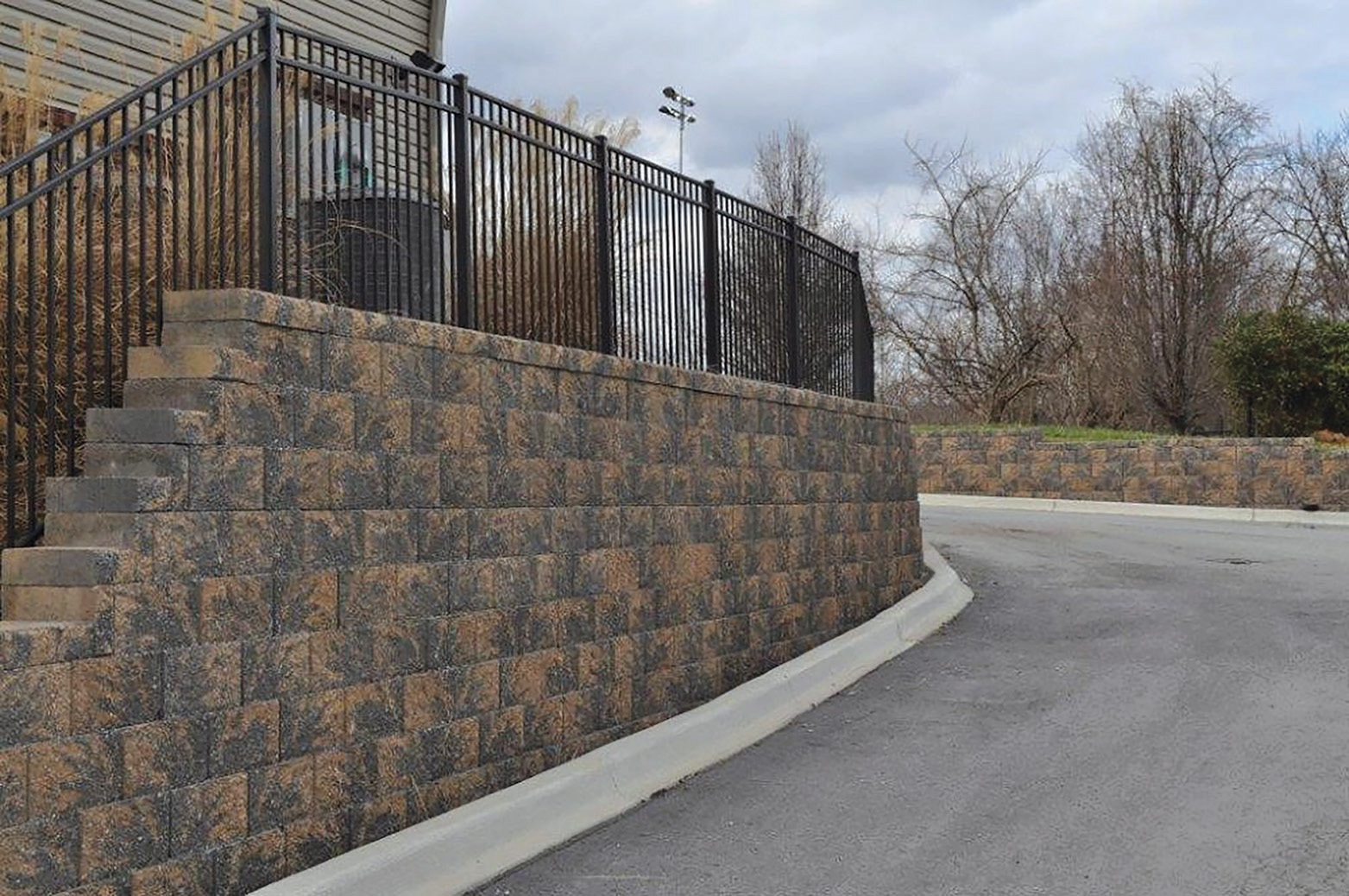

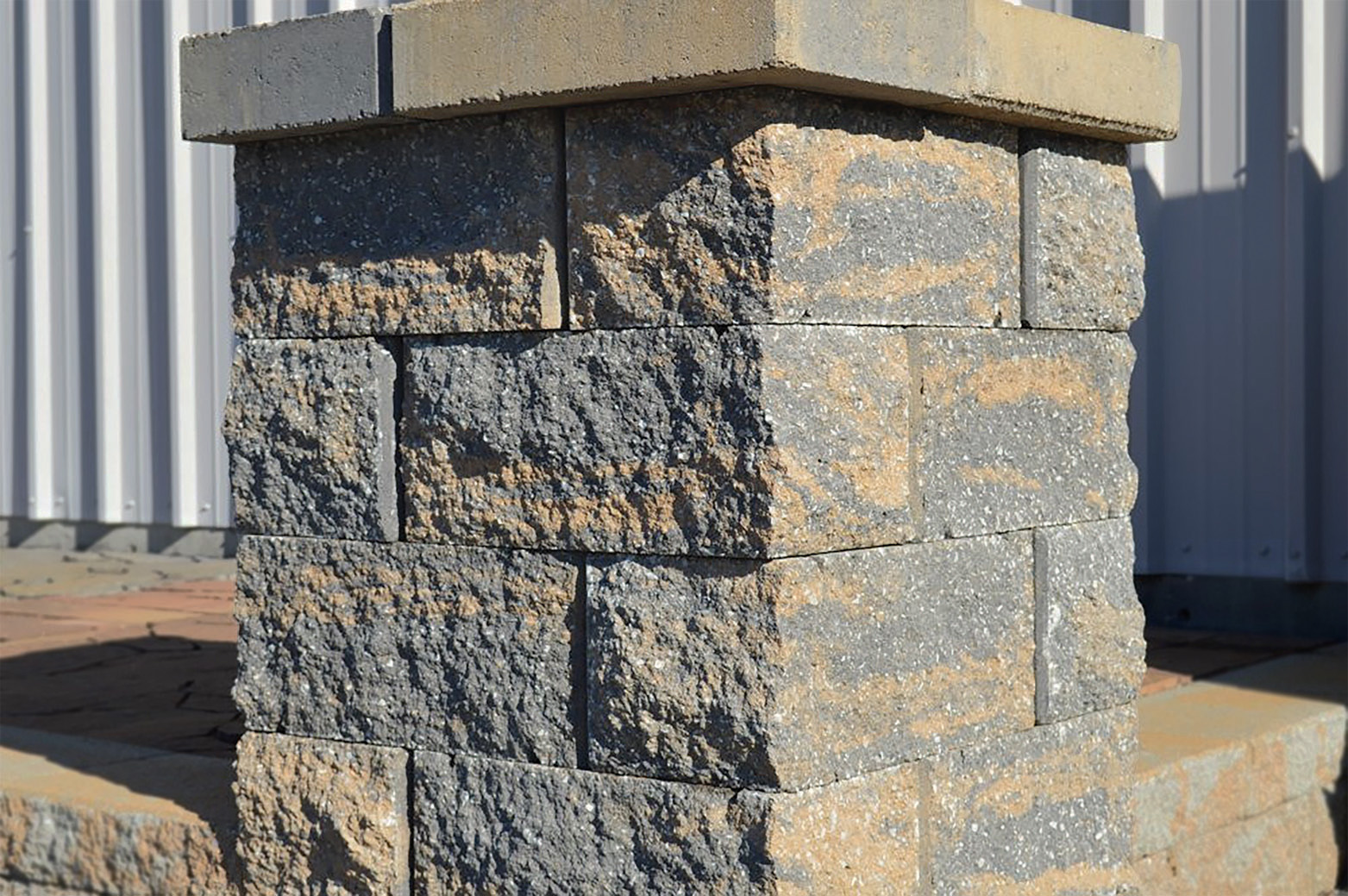

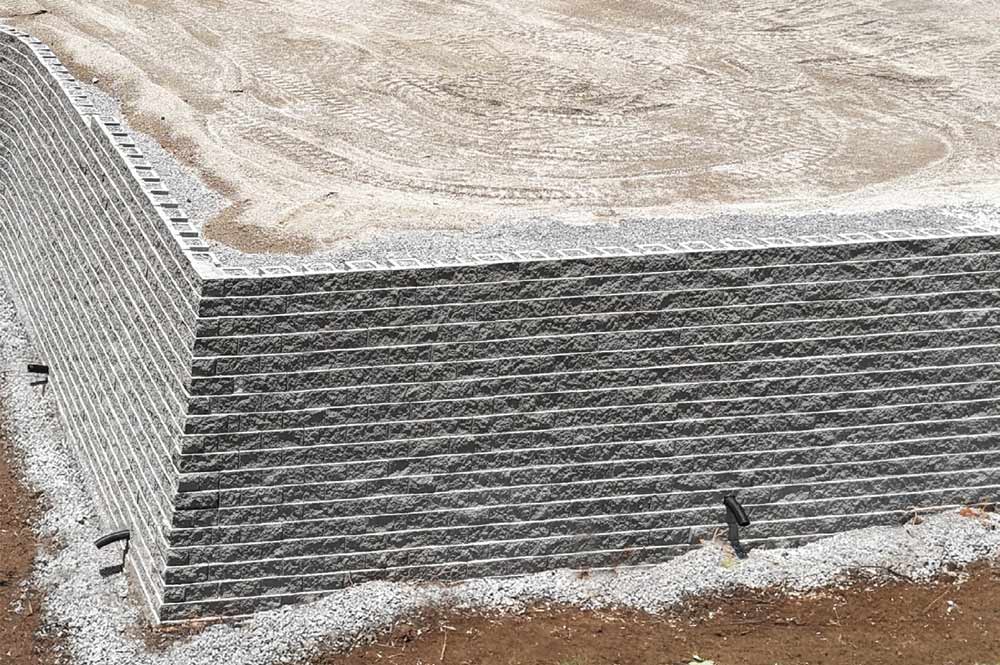

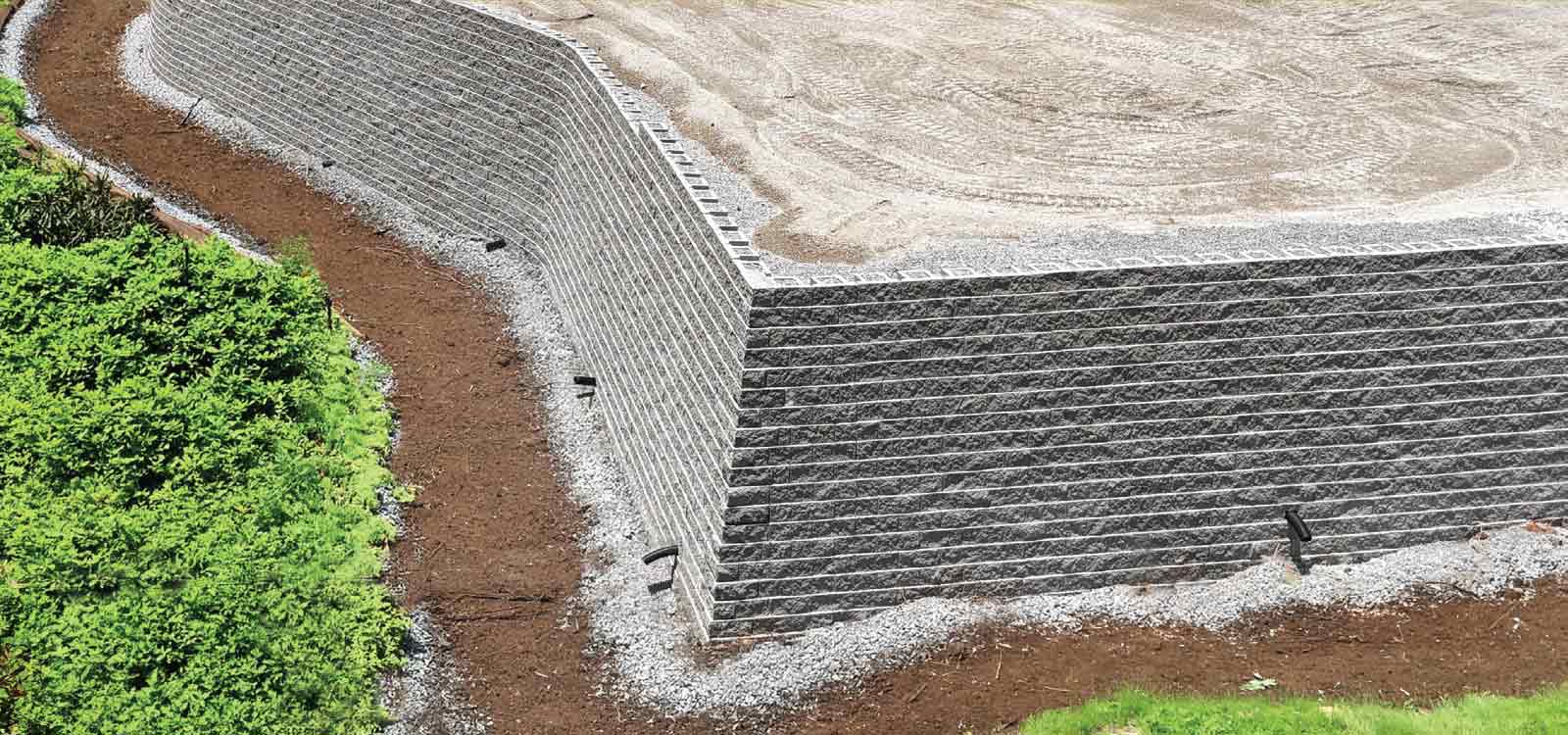

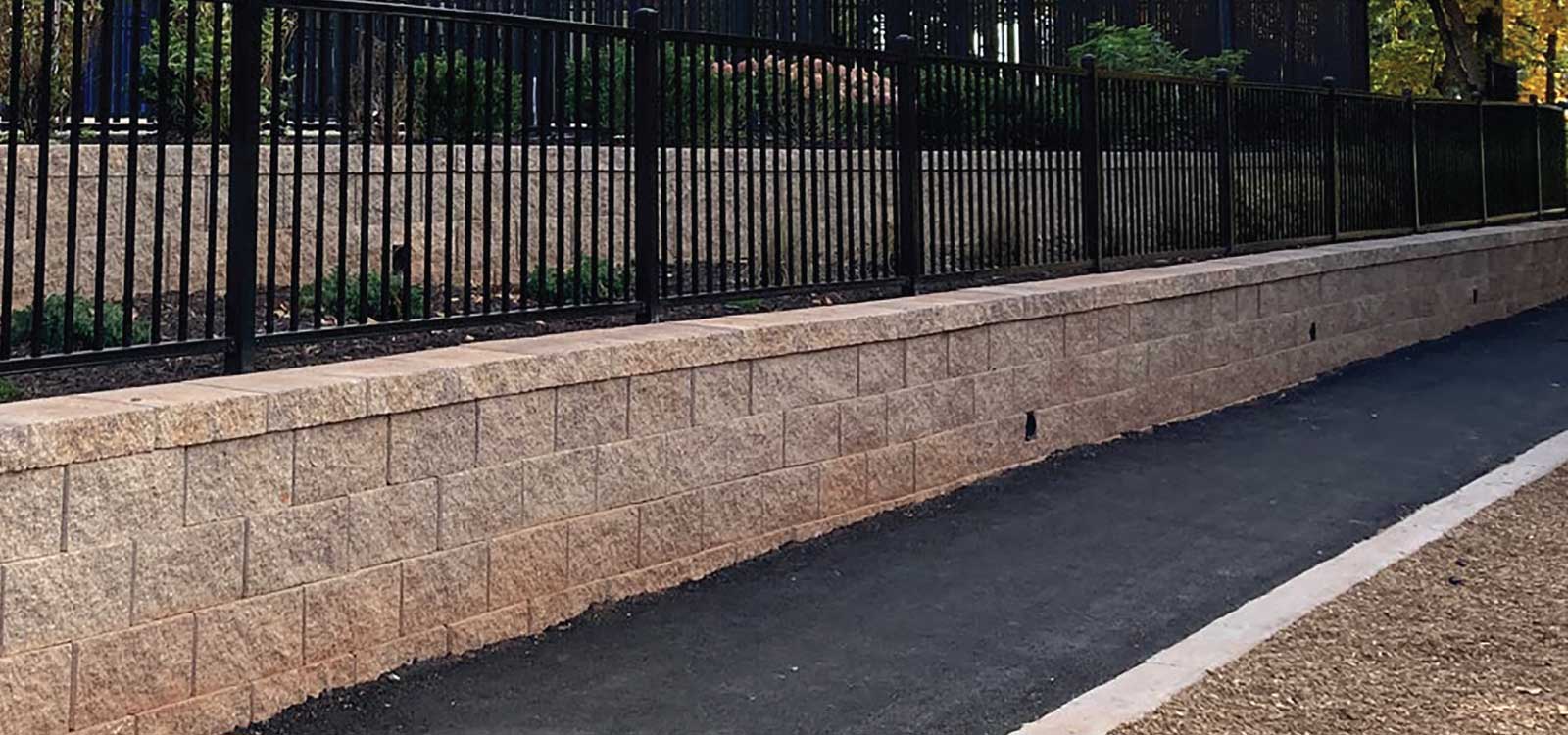

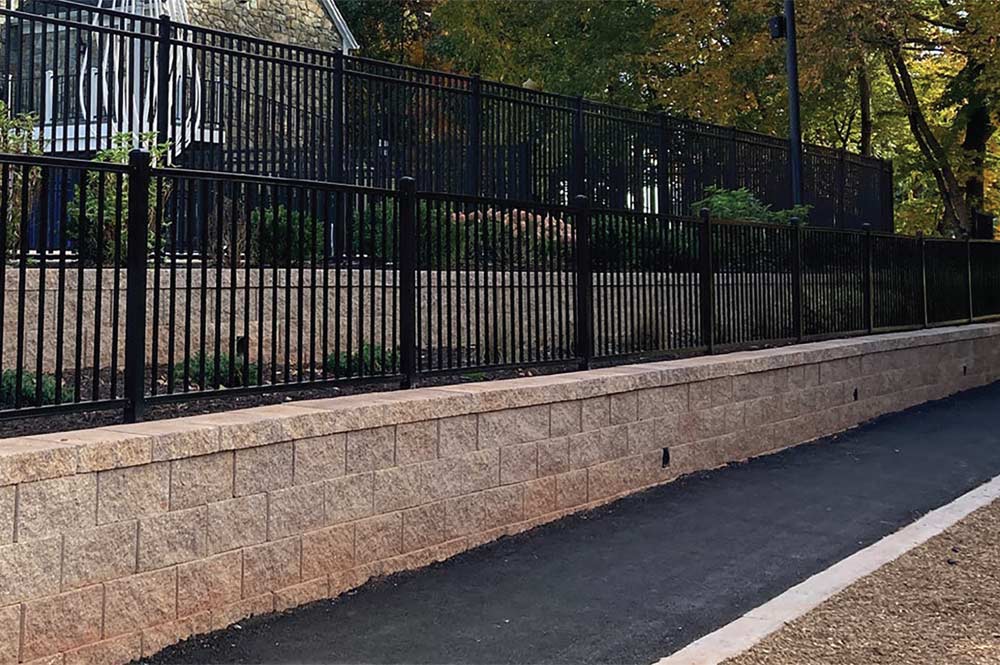

Gallery
