MAGNUMSTONE^TM

The Perfect Retaining Walls for Your Needs

MagnumStone™ Retaining Wall System is perfect for DOT (department of transportation) industrial and commercial retaining walls that require a more aesthetic look..

FEATURES

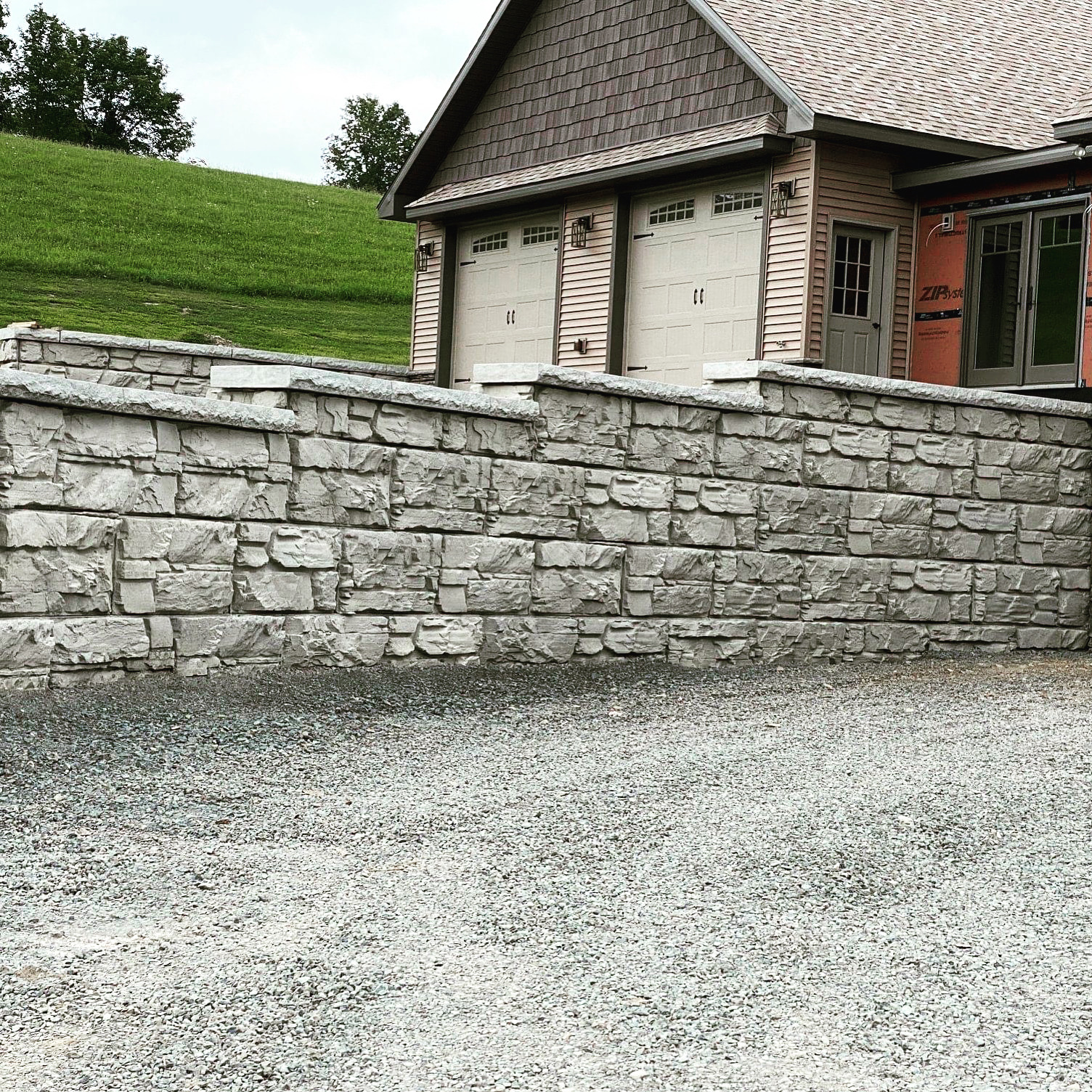

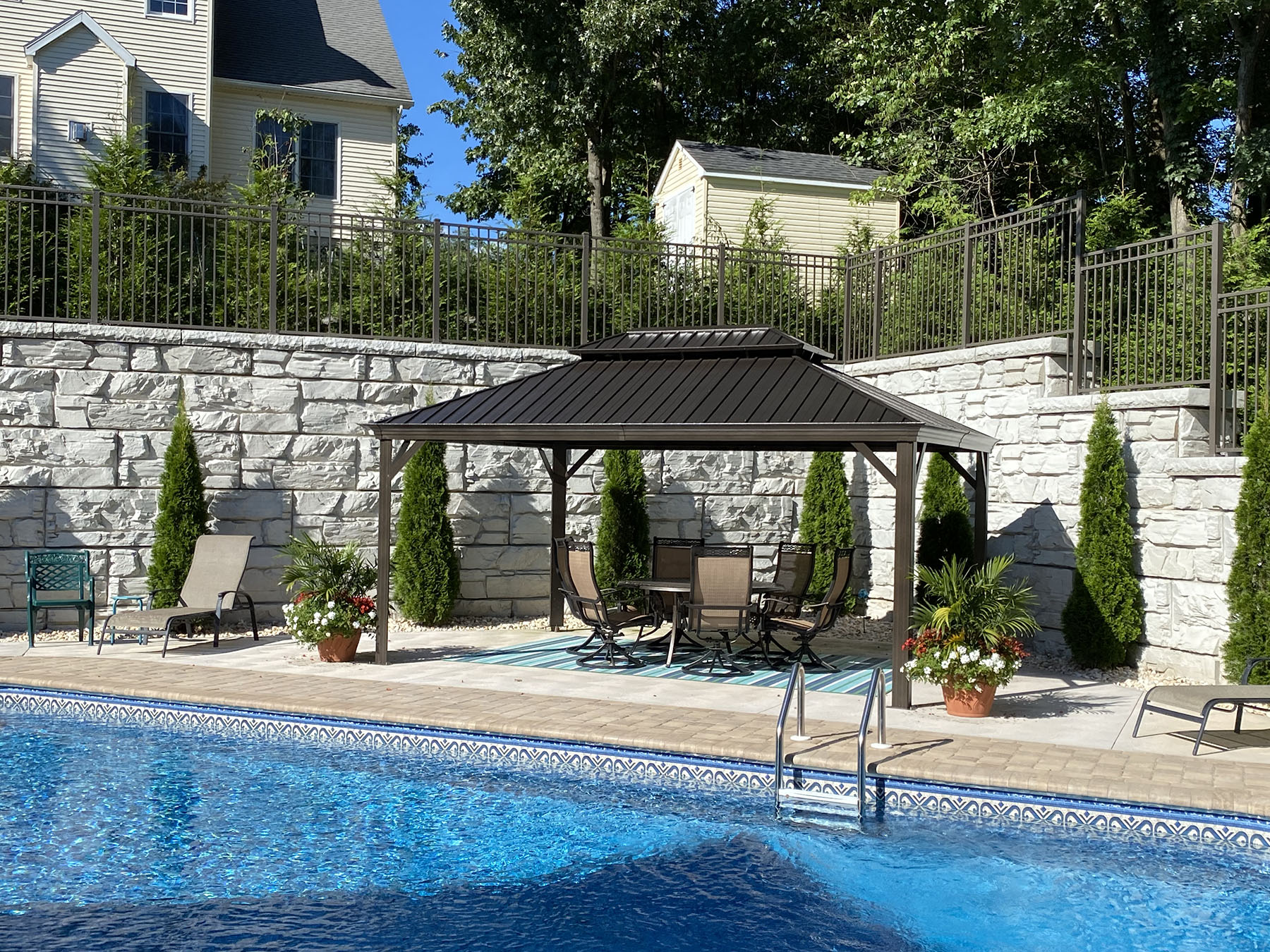

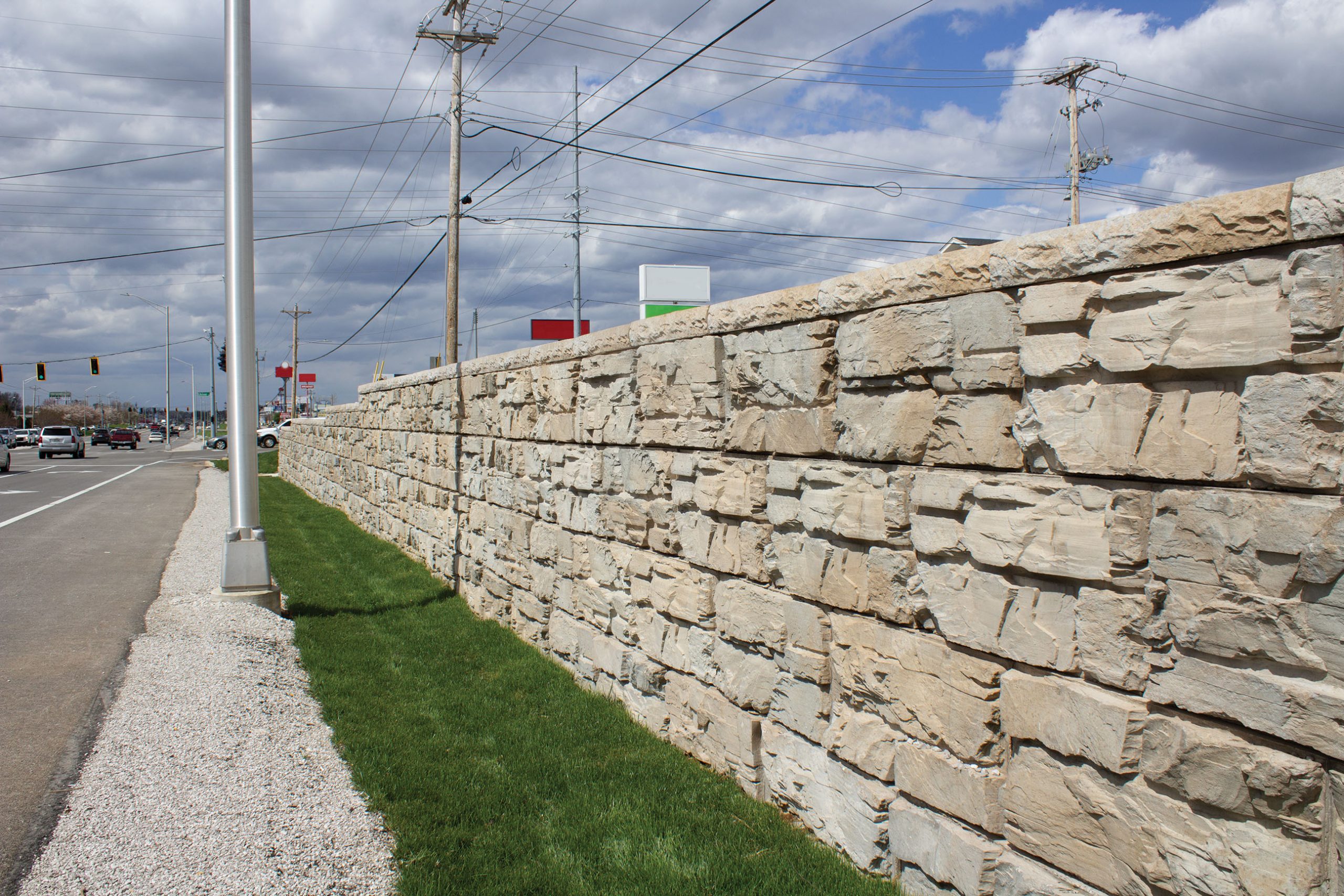

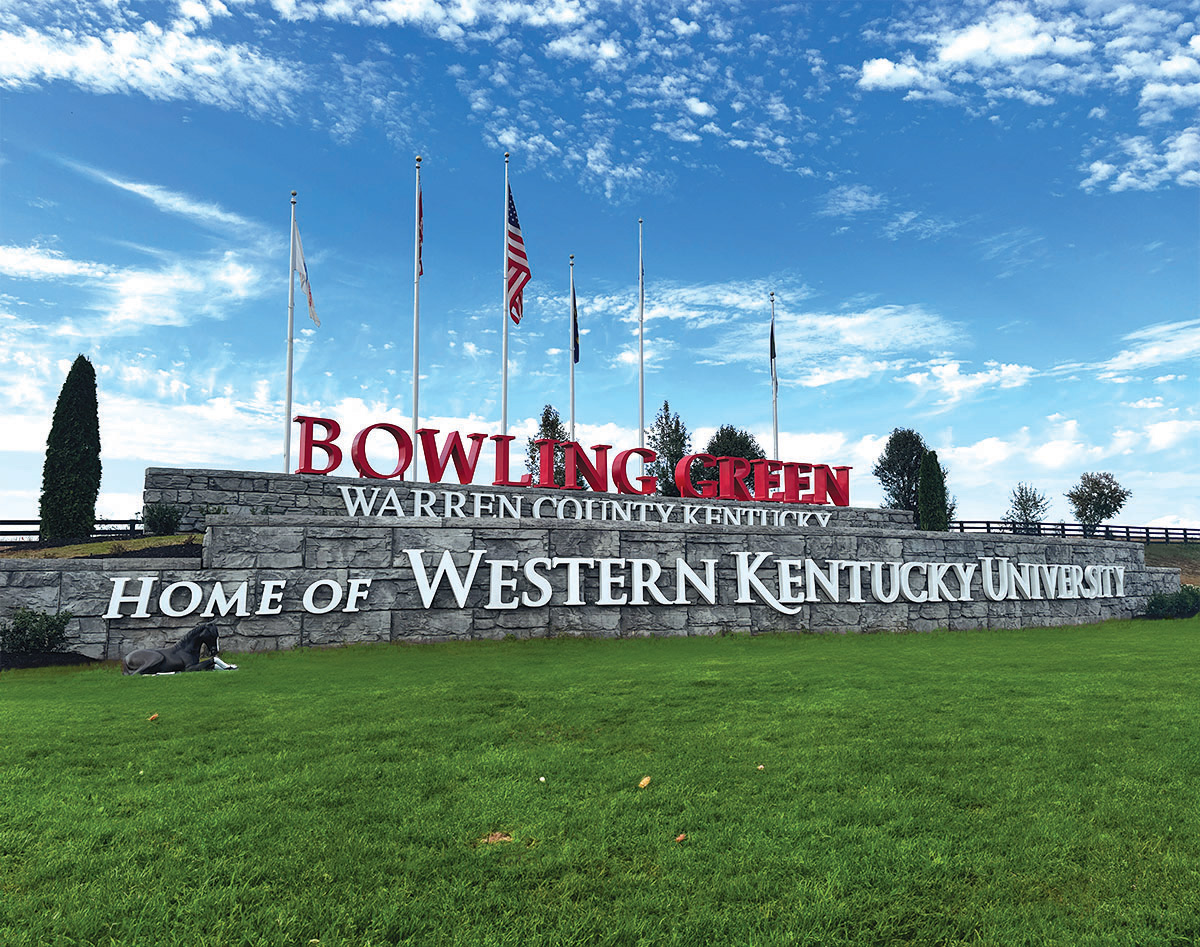

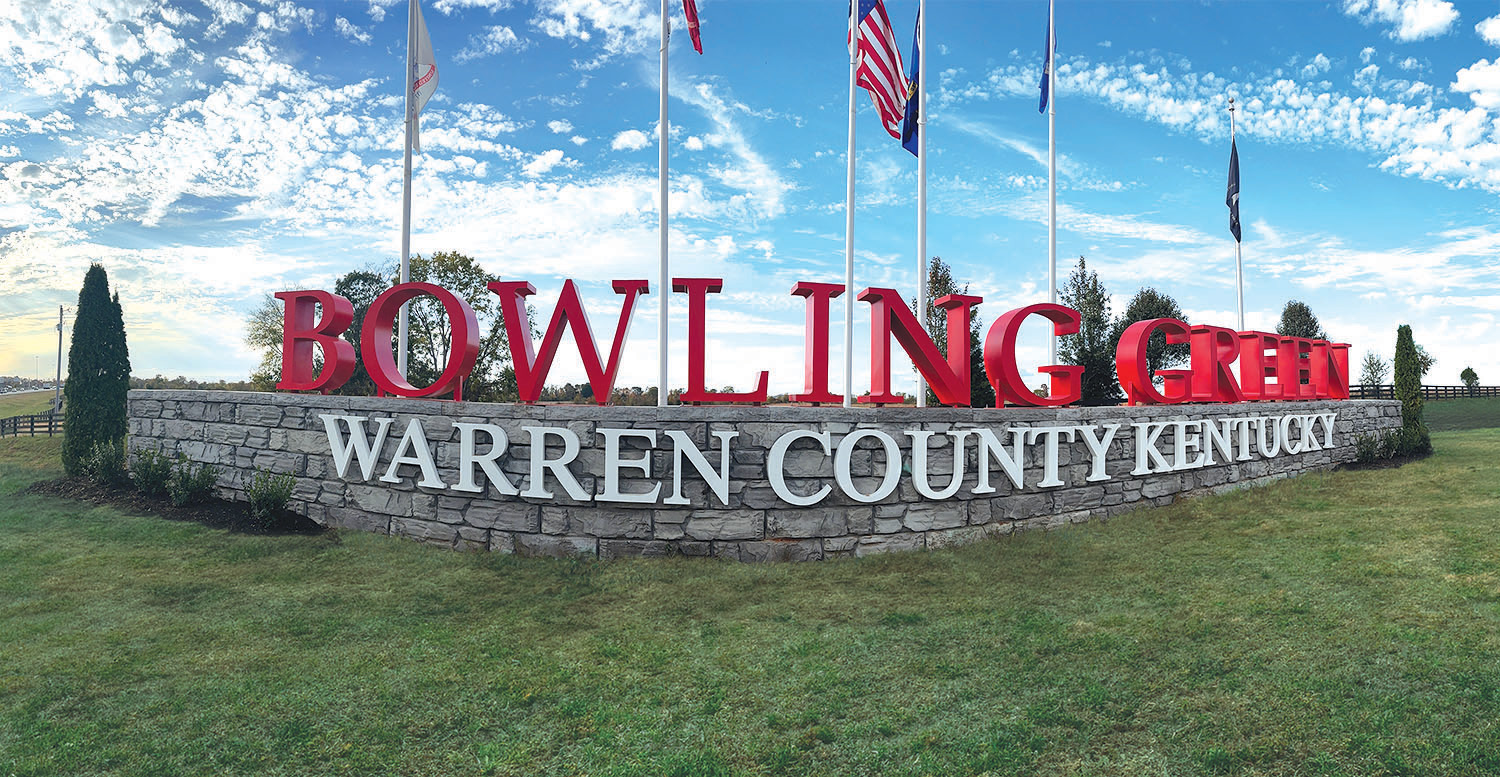

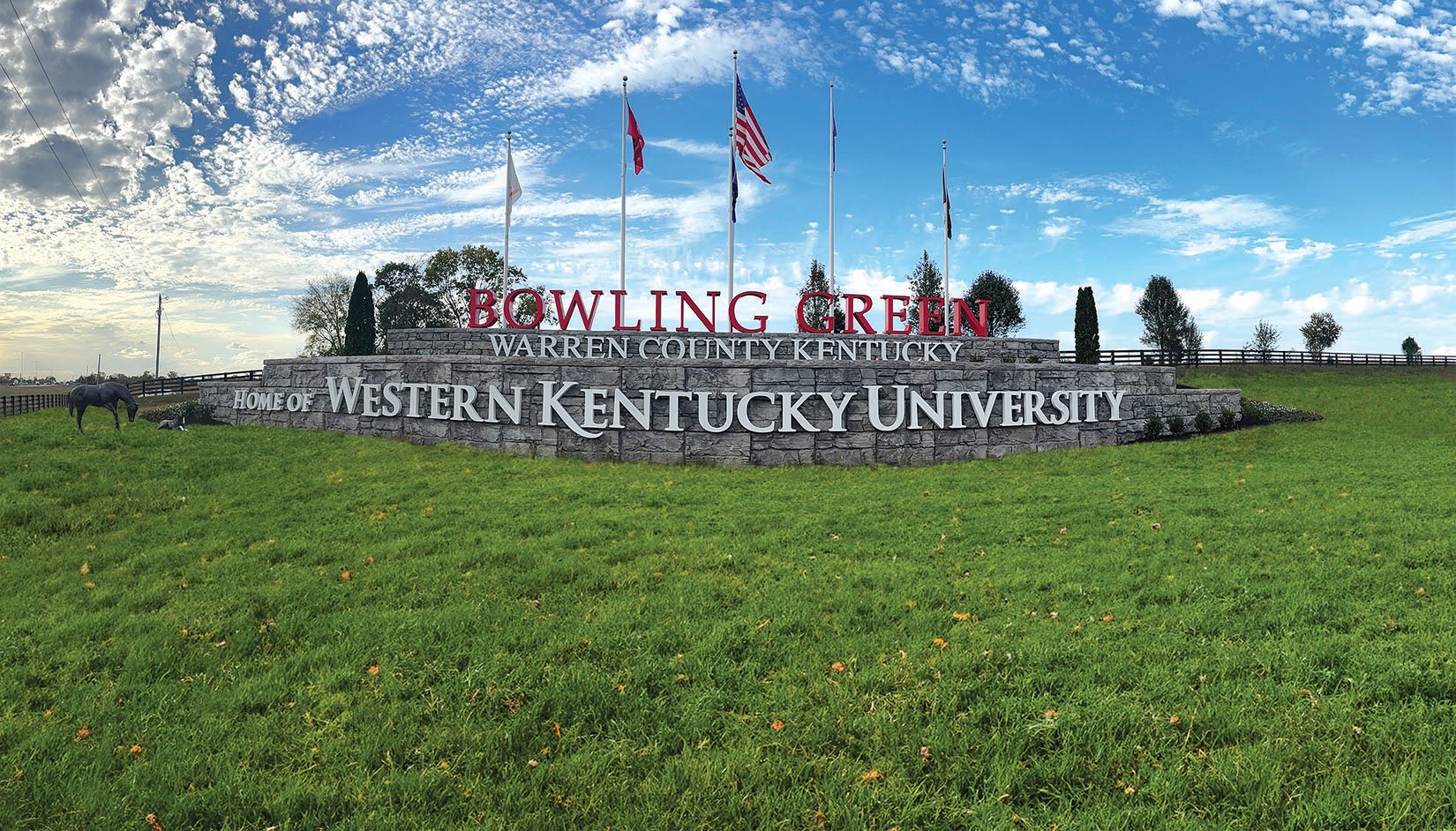

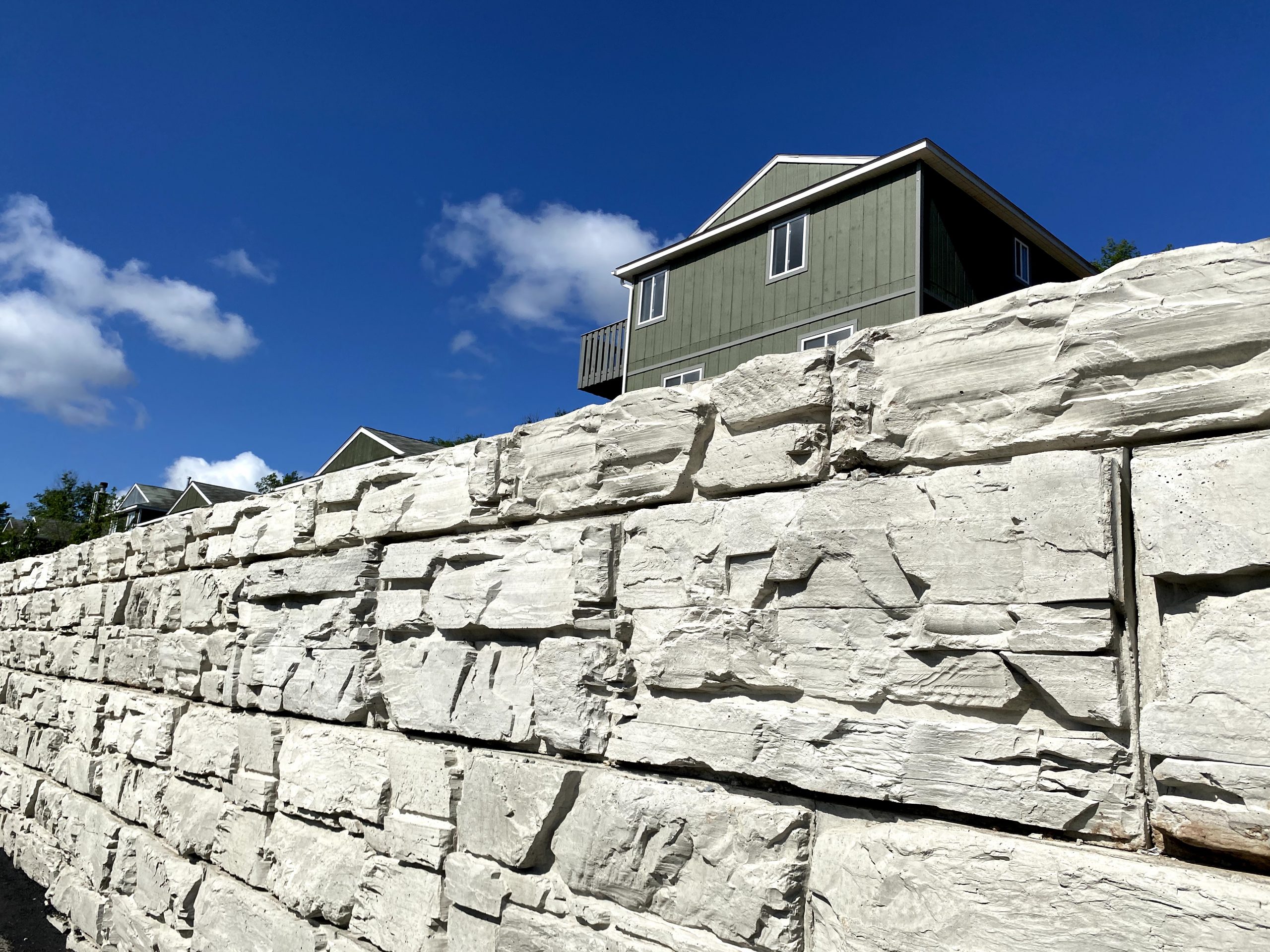

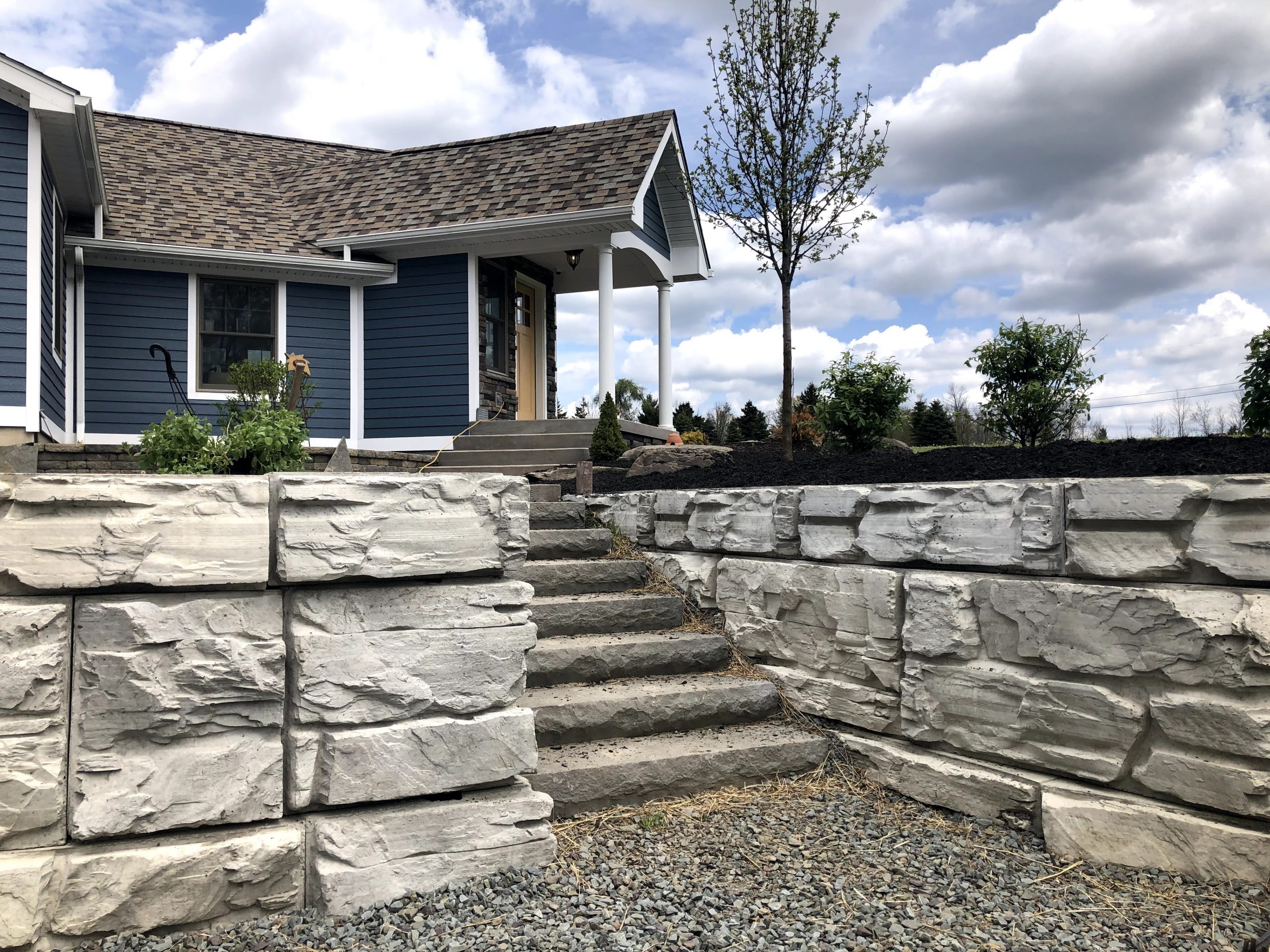

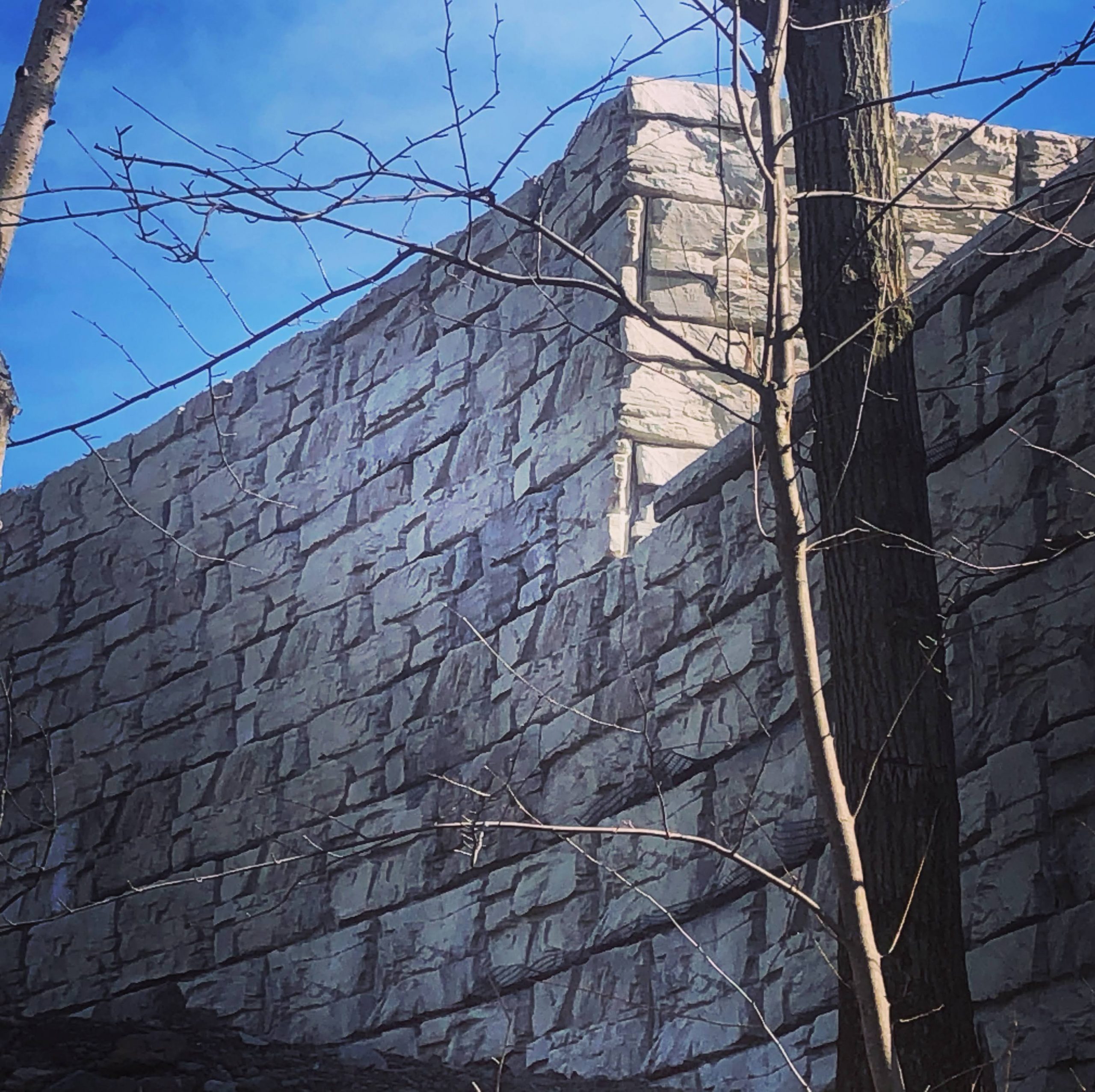

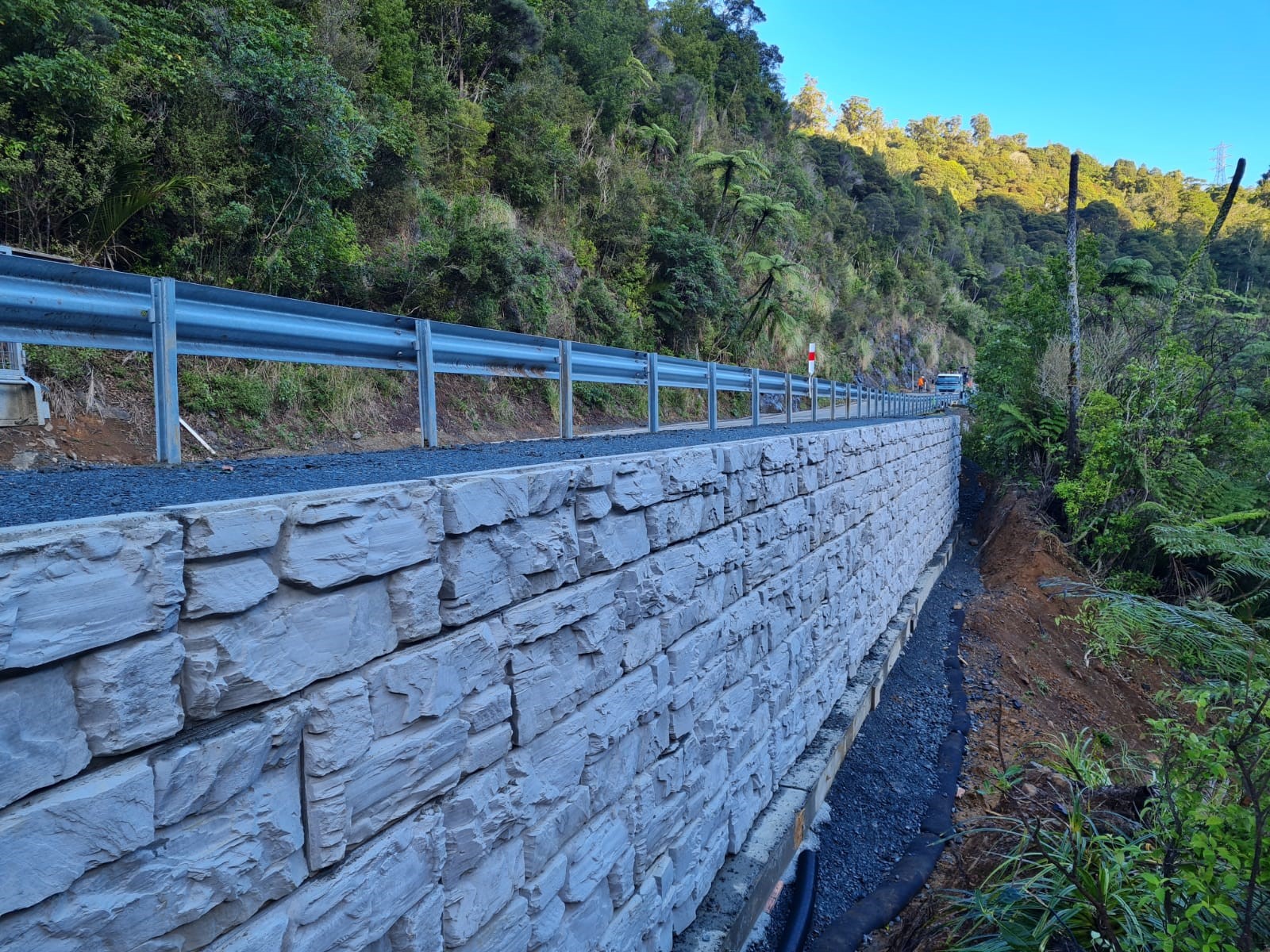

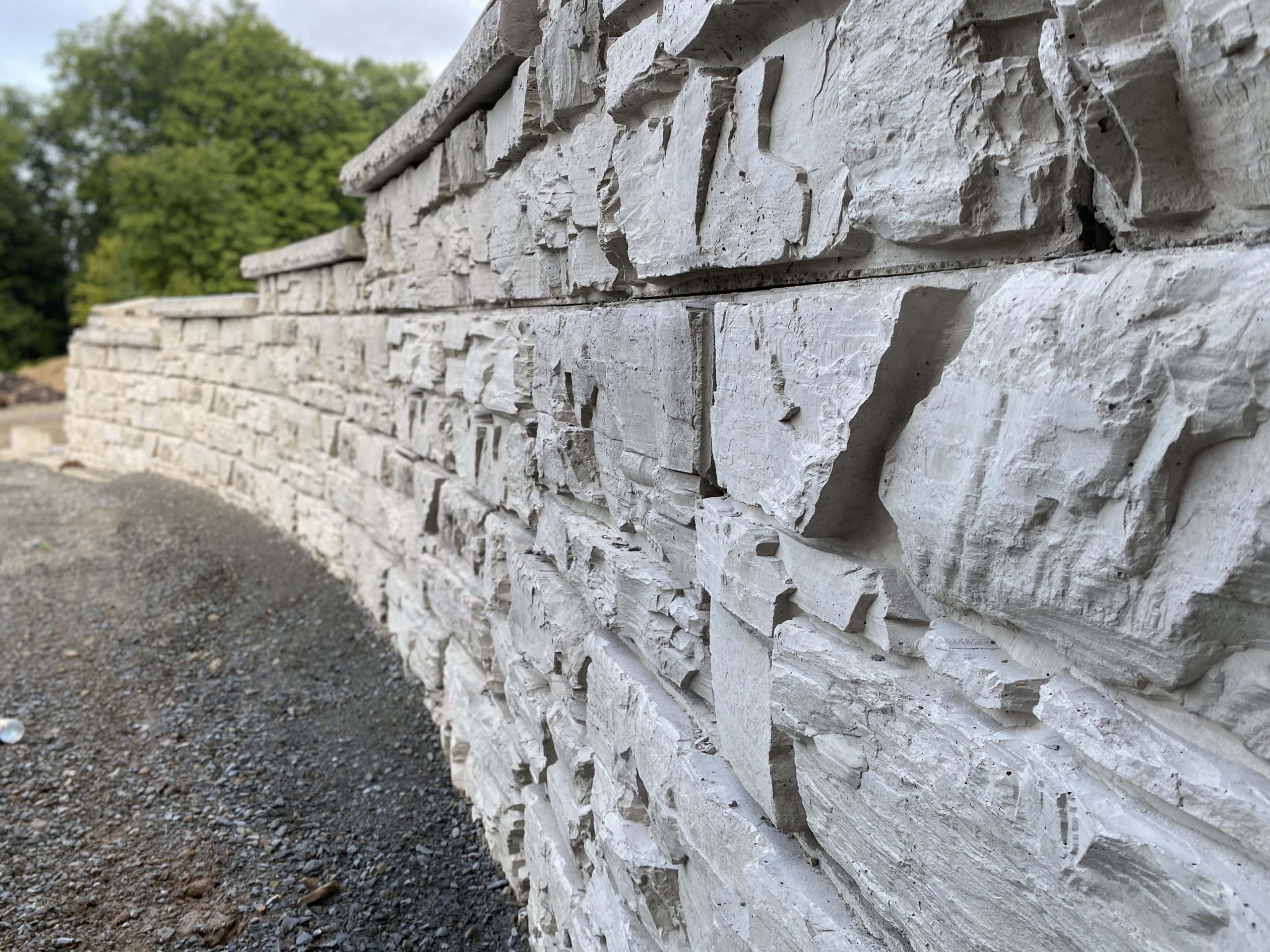

Using a tongue-and-groove system with its Gravity Retaining Wall Extenders, MagnumStone meets and exceeds the needs of engineers. This big block wall system consists of units that are made from high strength, wet cast concrete. These units provide durability and resistance to weathering and provides a hollow core, making it easier to saw cut. Also available with this system are the 2′ and 4′ extenders which can be used in any combination of standard lengths. Use on residential or commercial projects—anything from an interstate welcome sign to huge retaining walls for roadways to smaller walls for homes or businesses. MagnumStone big block walls are your answer for it all, plus the engineering behind this system is next to none

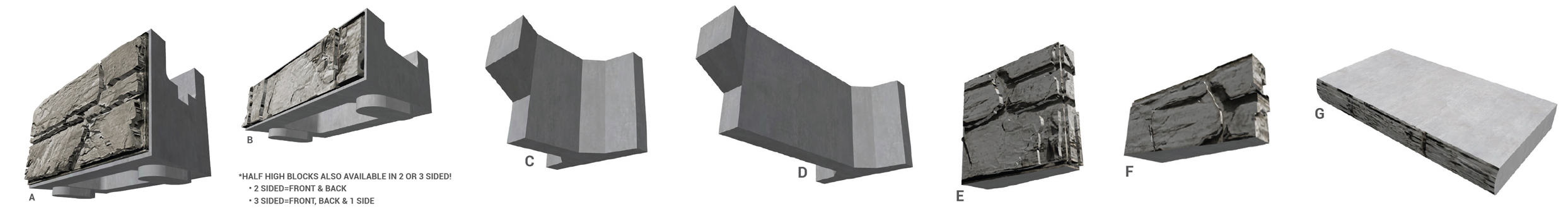

ITEM	DIMENSIONS	PRODUCT	SQFT/UNIT	SQFT/PALLET	QTY/PALLET	UNIT WT	PALLET WEIGHT
A	24″ x 48″ x 24″	Standard Block	8	16	2	1220-1370 LBS	2440-2740 LBS
B	12″ x 48″ x 24″	Half High Block	4	16	4	680-750 LBS	2720-3000 LBS
C	2′ x 24″	2′ Extender	—	—	4	520 LBS	2080 LBS
D	4′ x 24″	4′ Extender	—	8	2	820 LBS	1640 LBS
E	24″ x 24″ x 2″	Corner/End	4	8	2	340 LBS	680 LBS
F	12″ x 24″ x 2″	Half High Corner/End	2	—	4	170 LBS	680 LBS
G	6″ x 48″ x 24″	Step Cap	2	—	Min. Order 4 Units	290 LBS	1160 LBS

Size and weight are approximate, dimensions are nominal due to texture. Setbacks for Standard & Half block units is 4.5°/2.4°/0°

* Walls above 4′ (from the bottom of footer to top of wall) are required to be approved by an engineer per International Building Code (IBC). Site conditions such as soil, slope and surcharge may affect the need for reinforcement.

HEIGHT	DEPTH	WIDTH	FACE AREA	VOLUME OF VOIDS	GRAVEL FILLED WEIGHT	FACES	SETBACK
24″	23″	47″	12 ft2	4.01 ft3	2046 lbs	Varies	2.4
