ROSETTA® Belvedere
Belvedere Walls may look like a stacked fieldstone wall, but the technical resources like step-by-step instructions, preliminary height guides, and layout patterns make designing with and installing them so much easier than natural stone!

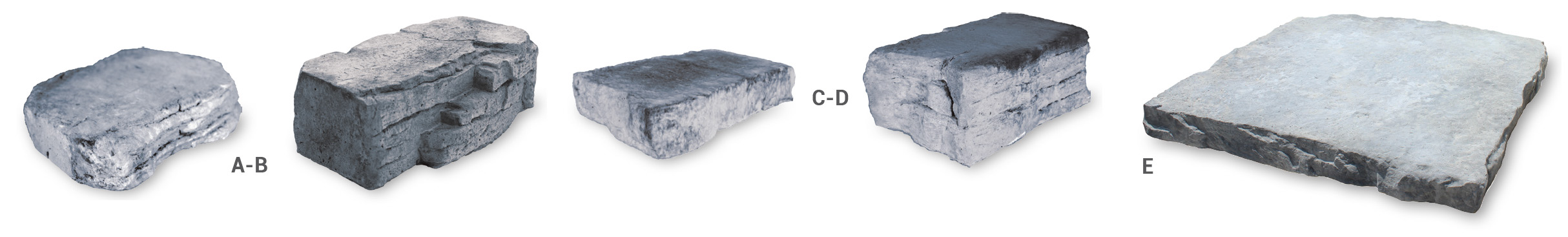

WALL SYSTEM & COLUMN CAPS
| ITEM | DIMENSIONS | PRODUCT | SQFT/LAYER | LAYERS/PALLET | SQFT/PALLET | PALLET WEIGHT |
| A | 3″ | Wall Unit | 9 | 6 | 27 | 2280 LBS |
| B | 6″ | Wall Unit | ||||
| C | 3″ | Corner Unit | 12 | 4 | 24 | 1468 LBS |
| D | 6″ | Corner Unit | ||||
| E | 27″ x 27″ x 2.5″ | Column Cap Unit | 5.06 SQFT/UNIT | 10 PCS. (QTY/PALLET) | — | 1416 LBS |
BULLNOSE COPING
| ITEM | DIMENSIONS | PRODUCT | SQFT/LAYER | LAYERS/PALLET | LNFT/PALLET | QTY/PALLET | PALLET WEIGHT |
| F | 6″ x 10.25″ x 2.25 | Belvedere Coping | 11 | 6 | 66 | 72 pcs | 1400 LBS |
| G | 12″ x 10.25 x 2.25″ | ||||||
| H | 18″ x 10.15″ x 2.25″ | ||||||
| I | 18″ x 10.25″ x 2;25″ | Standard Bullnose Coping | — | 6 | 66 | 36 pcs | 1800 LBS |
COLOR SWATCHES AVAILABLE

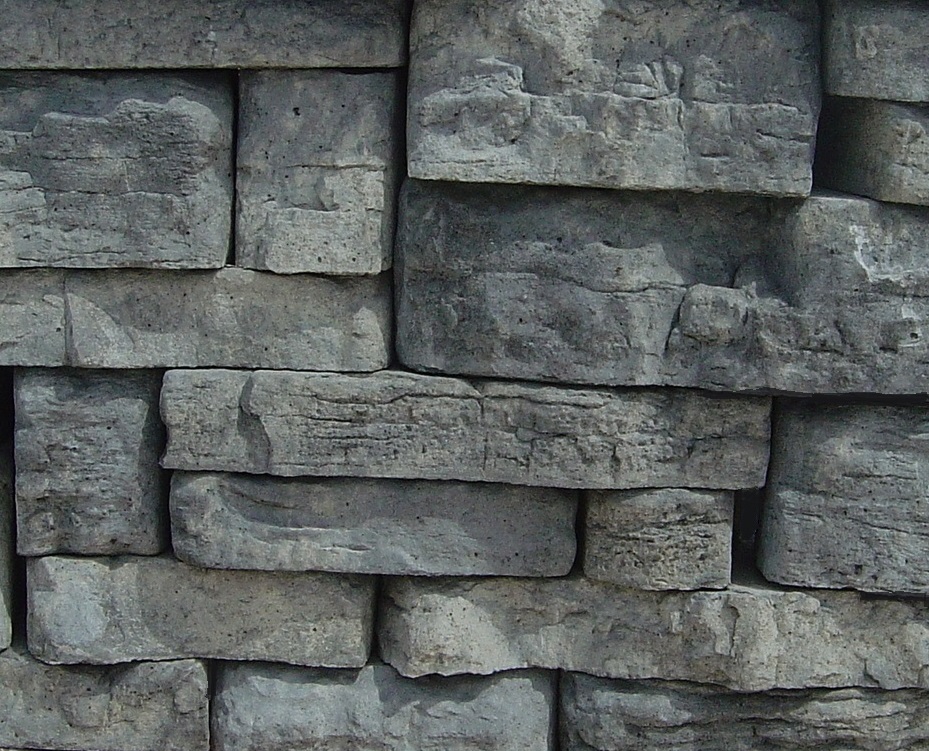

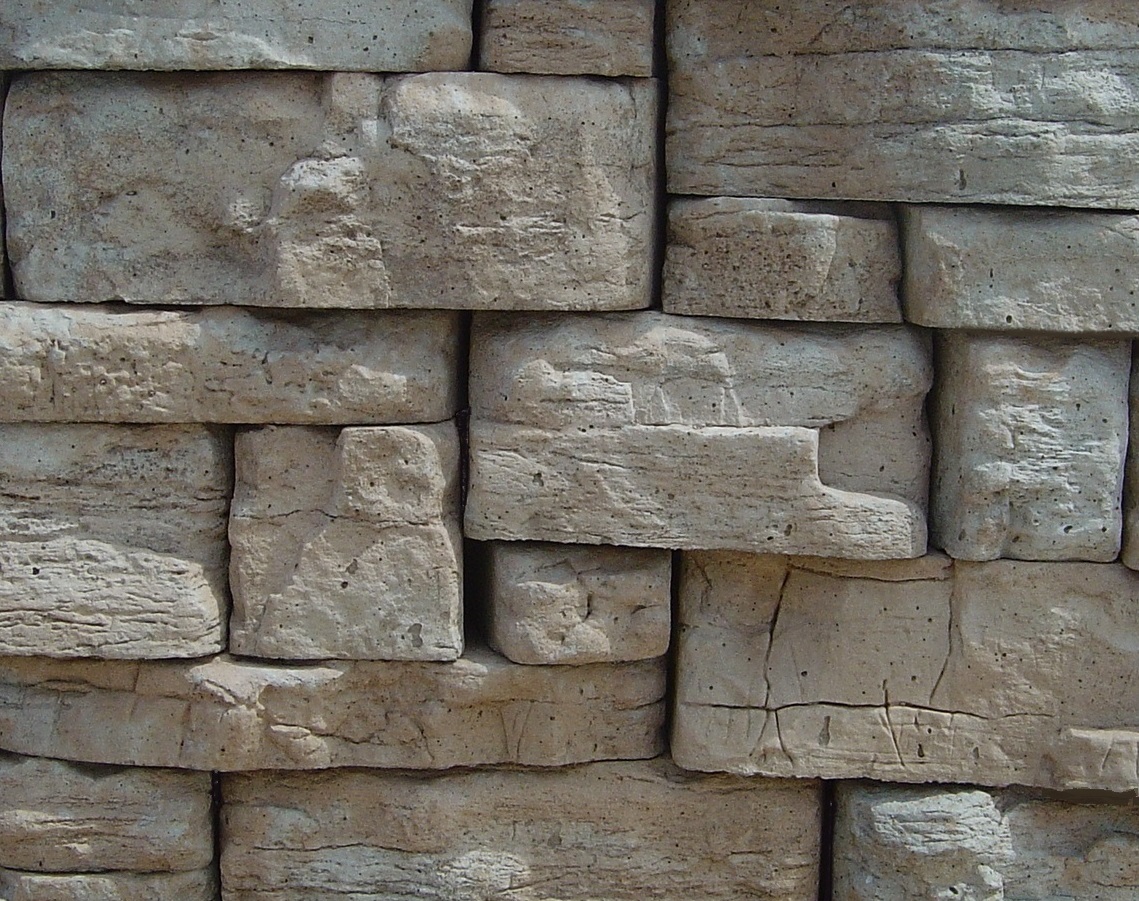

WALL

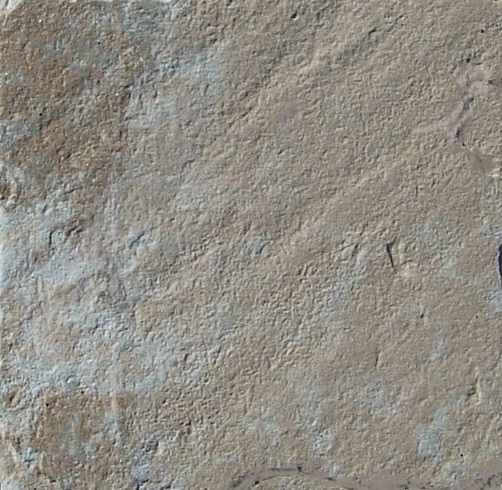

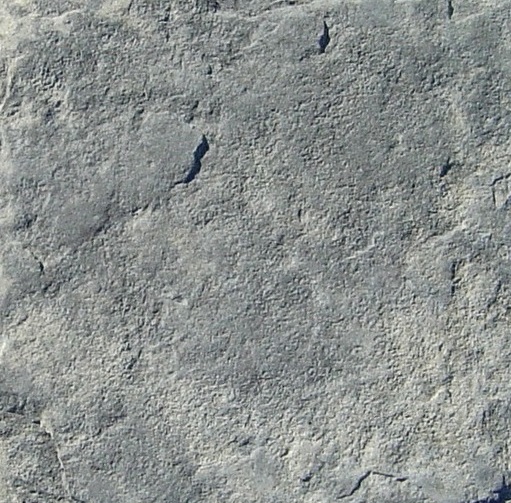

COPING

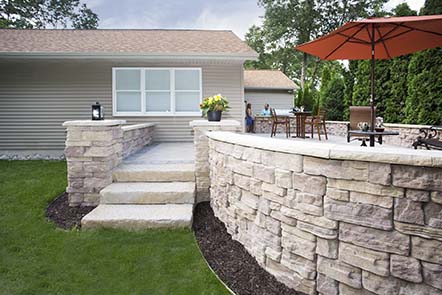

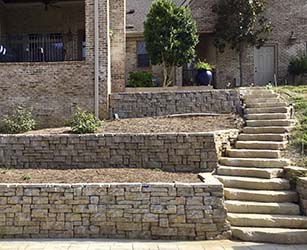

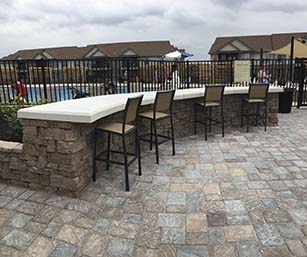

GALLERY
