Intriguing wall design to fit any landscape
Designed For Beauty: StoneVista™ is a double-sided, multi-sized unit system with a timeless appearance. StoneVista™ blends naturally with foliage, plantings and waterscapes. The versatile unit sizes and variety of colors deliver exceptional aesthetics that enhance a site’s natural qualities.
Installation Benefits: StoneVista™ is suitable for many applications including retaining walls, stairs, pillars, planters and terraced patios. StoneVista’s connectors provide a superb connection for geogrid, giving engineers and designers confidence in the performance of simple or complex designs.

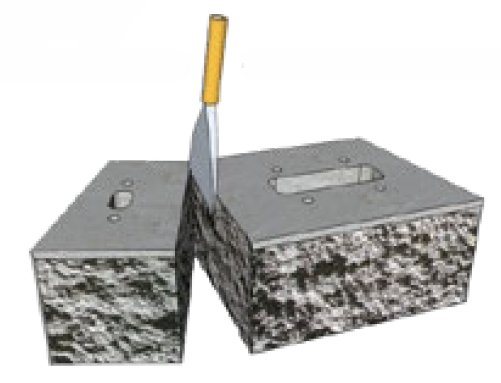

Create corner units by splitting 18″ unit along the splitting groove.

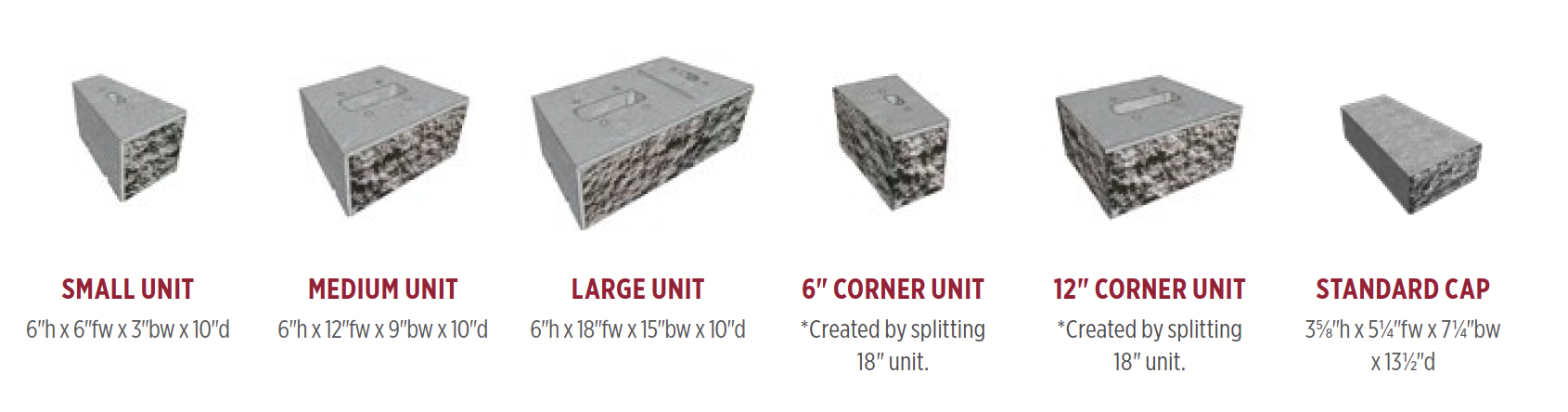

| ITEM | STYLE | SQFT/UNIT | SQFT/LAYER | LAYERS/PALLET | QTY/LAYER | QTY/PALLET | SQFT/PALLET | UNIT WT | PALLET WEIGHT |
| Small Unit | Splitface | .25 | 9 | 5 | 6 | 30 | 45 | 20 lbs | 3859 lbs |
| Medium Unit | Splitface | .5 | 41 lbs | ||||||
| Large Unit | Splitface | .75 | 67 lbs | ||||||
| Standard Cap | Splitface (F&B) | .52 Avg Lnft | 11.375 Lnft/Lyr | 5 | 21 | 105 | 56.875 Lnft | 23 lbs | 2500 lbs |
*Corner units are made on job site by customer by splitting large unit to make one 6″ corner unit and one 12″corner unit.

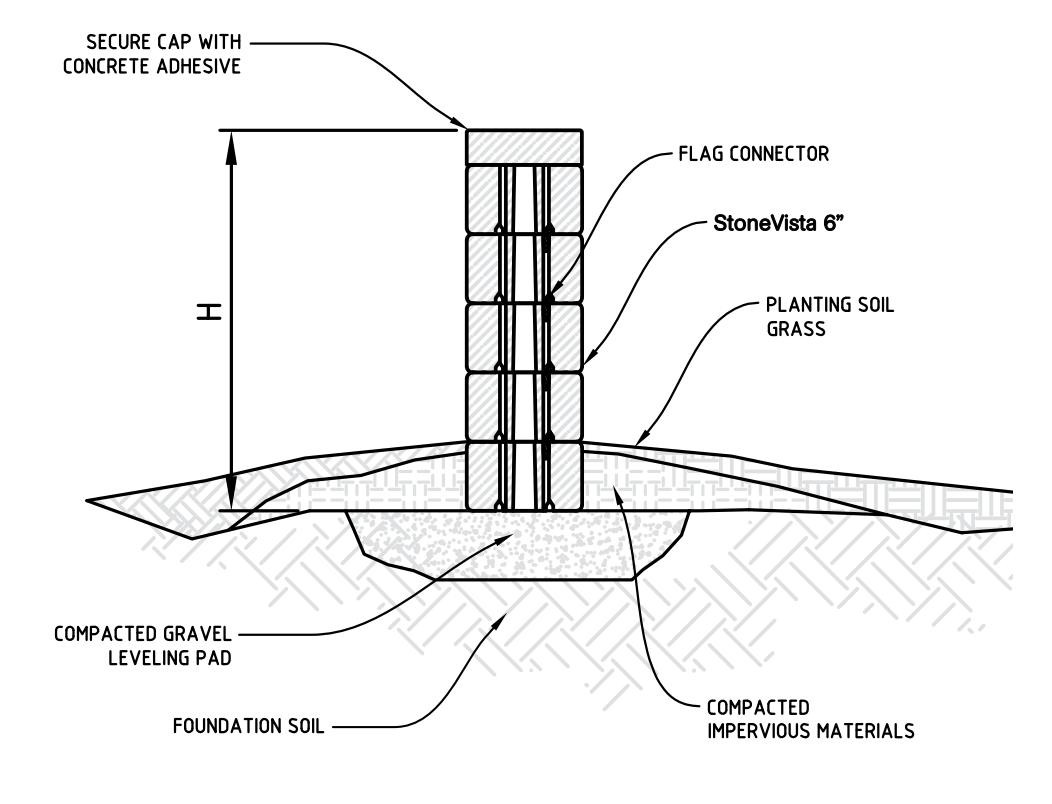

Typical Freestanding Cross Section

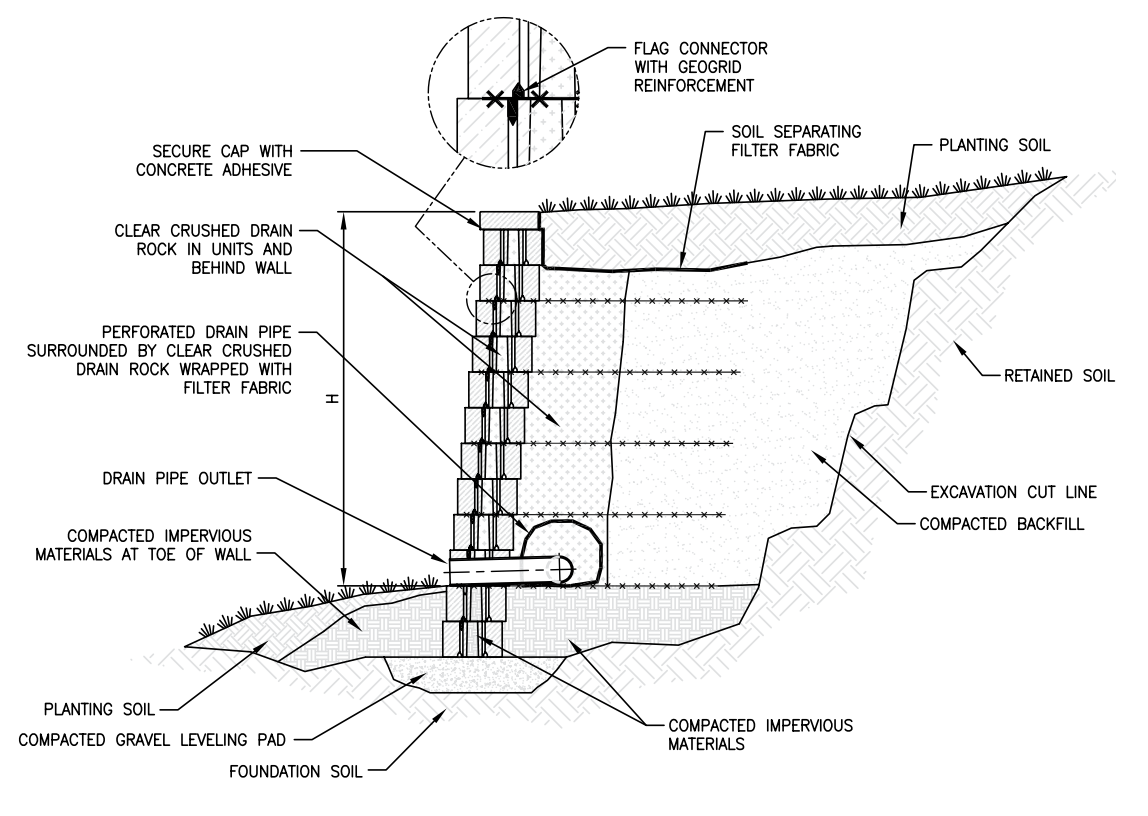

Typical Geogrid Reinforced Cross Section
Color Blends
RAVENS BLEND – CHARCOAL/GRAY
3-Piece Combo Item #: 17H9600RB-NA
Cap Item #: 17H9610RB-NA
SANDSTONE BLEND – TAN/GRAY
3-Piece Combo Item #: 17H9600SS-NA
Cap Item #: 17H9610SS-NA
WOODLAND BLEND – BROWN/CHARCOAL
3-Piece Combo Item #: 17H9600WB-NA
Cap Item #: 17H9610WB-NA
*Walls above 3’ (from bottom of footer to top of wall) are required to be approved by an engineer per International Building Code (IBC). Site conditions such as soil, slope and surcharge may affect the need for reinforcement. Face textures may vary. Specifications are nominal and may change without notice. StoneVista™ and CornerStone® are registered trademarks of CornerStone Wall Solutions Inc
